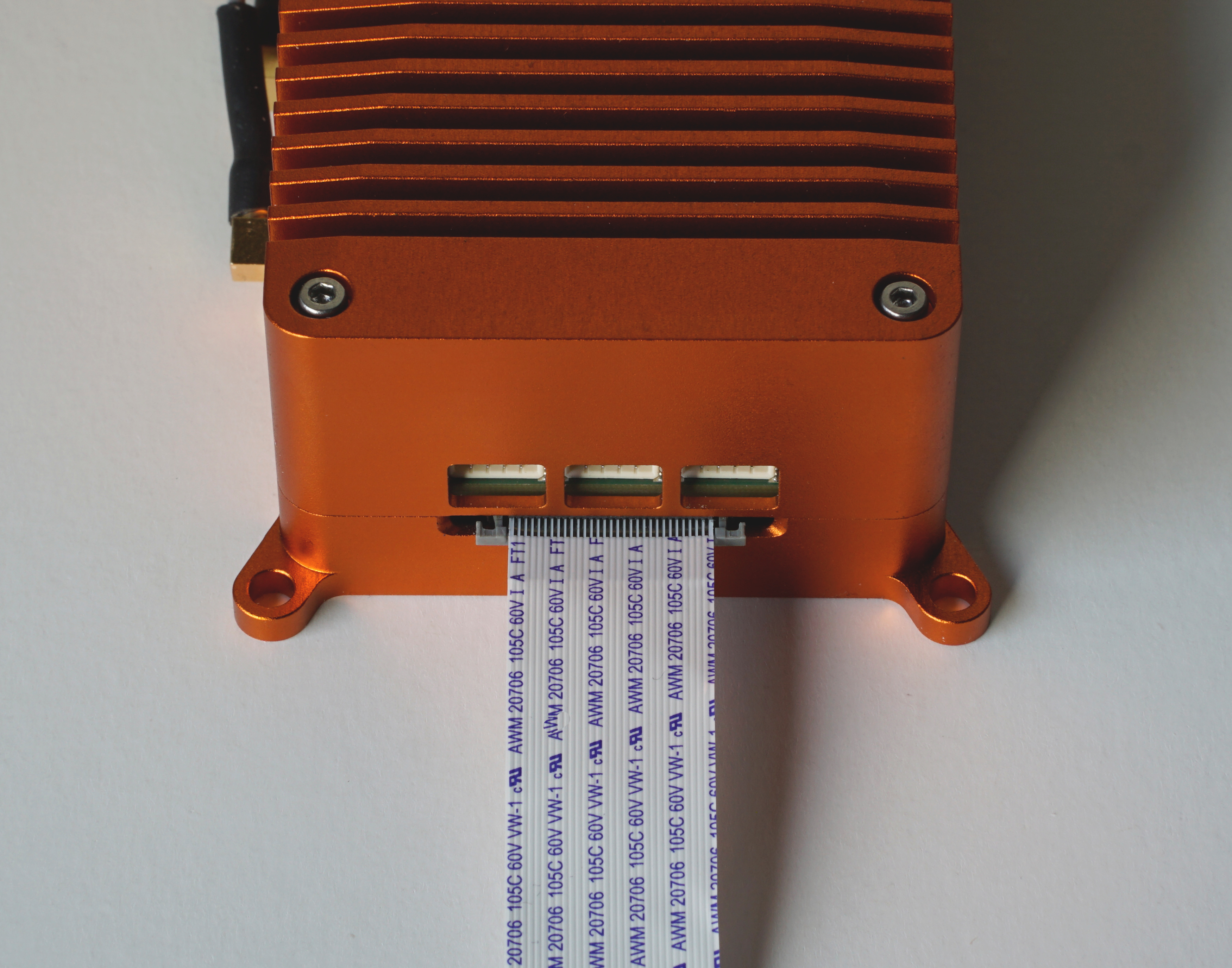

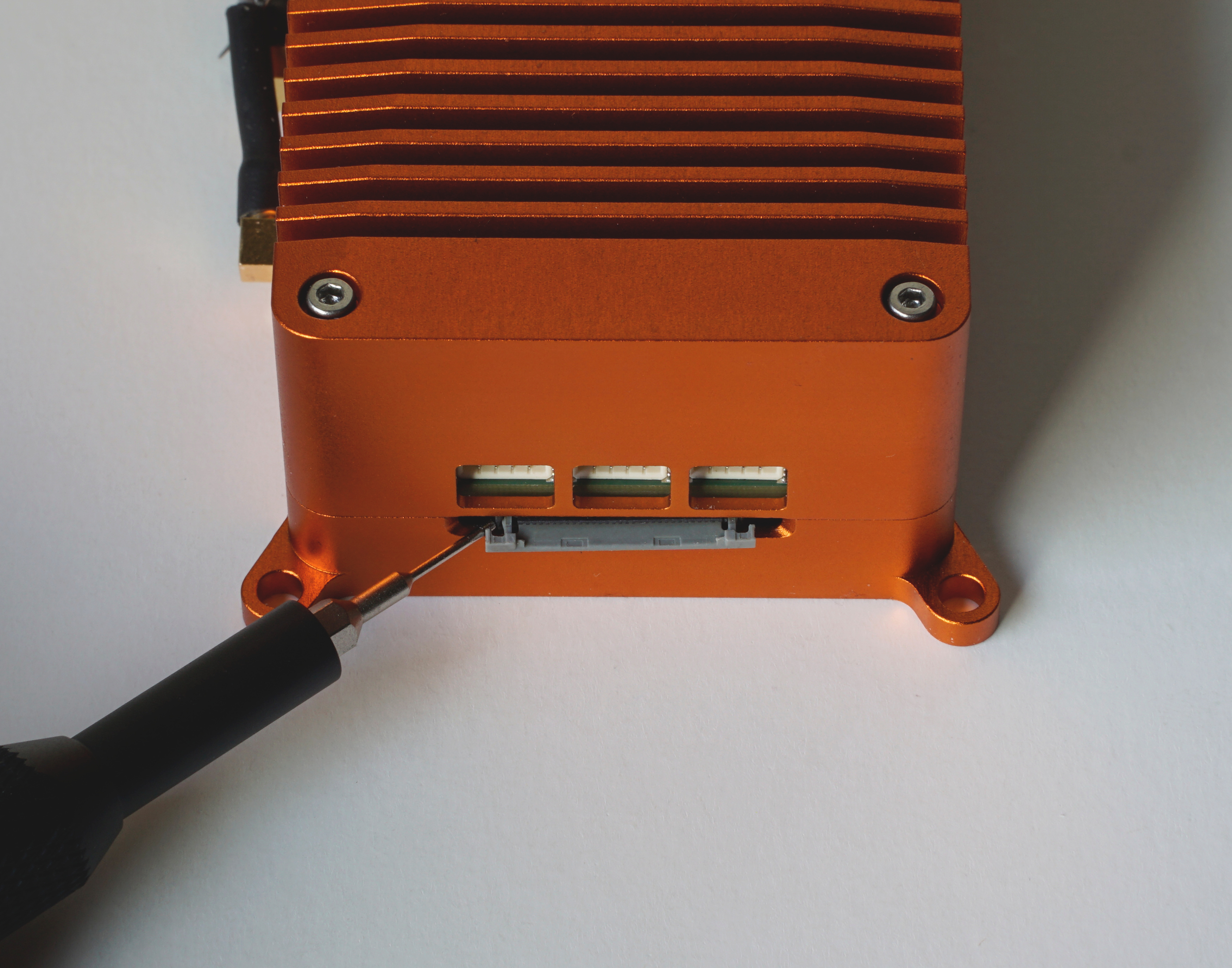

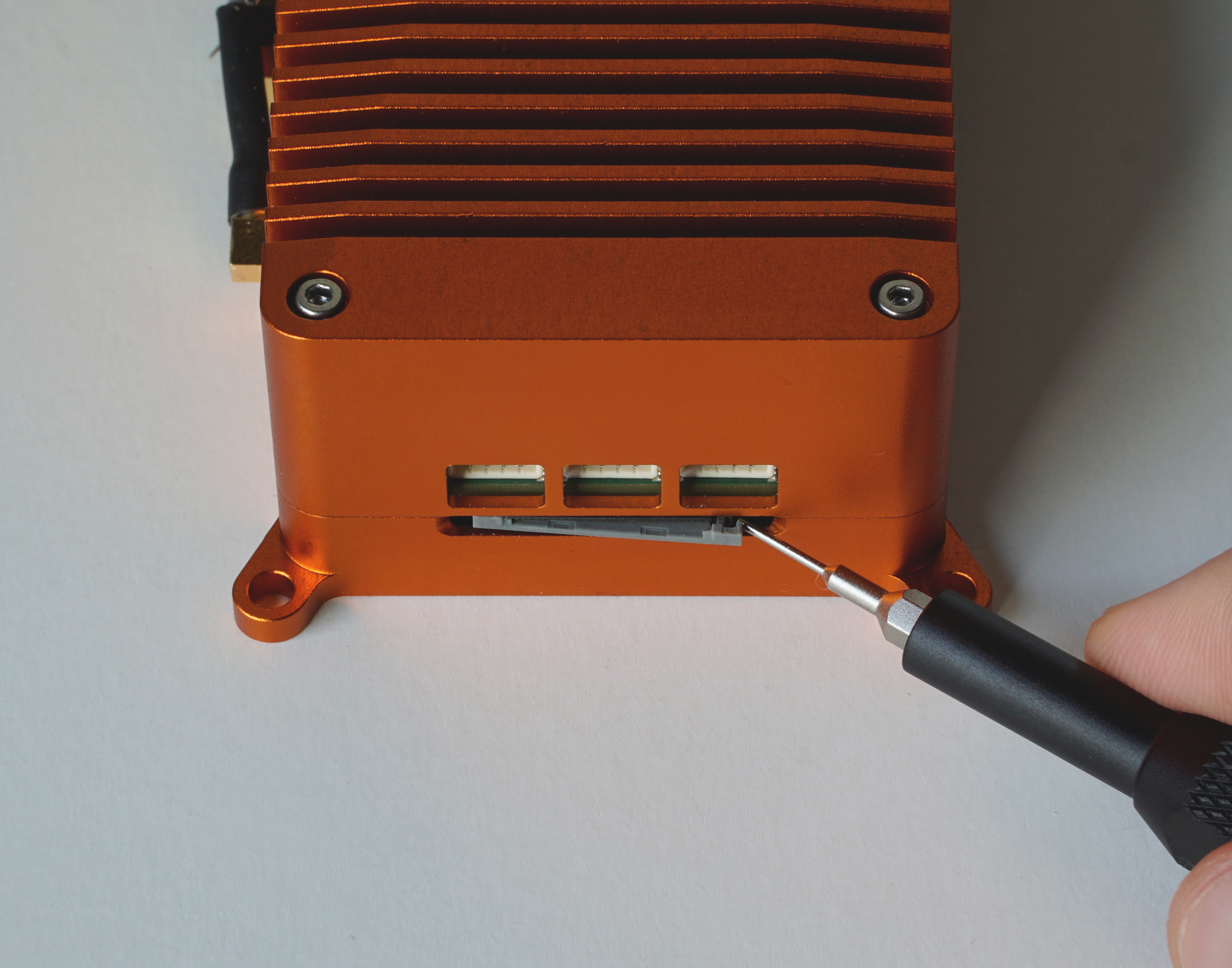

  • Connect FFC cable to Skynode PPB Connector

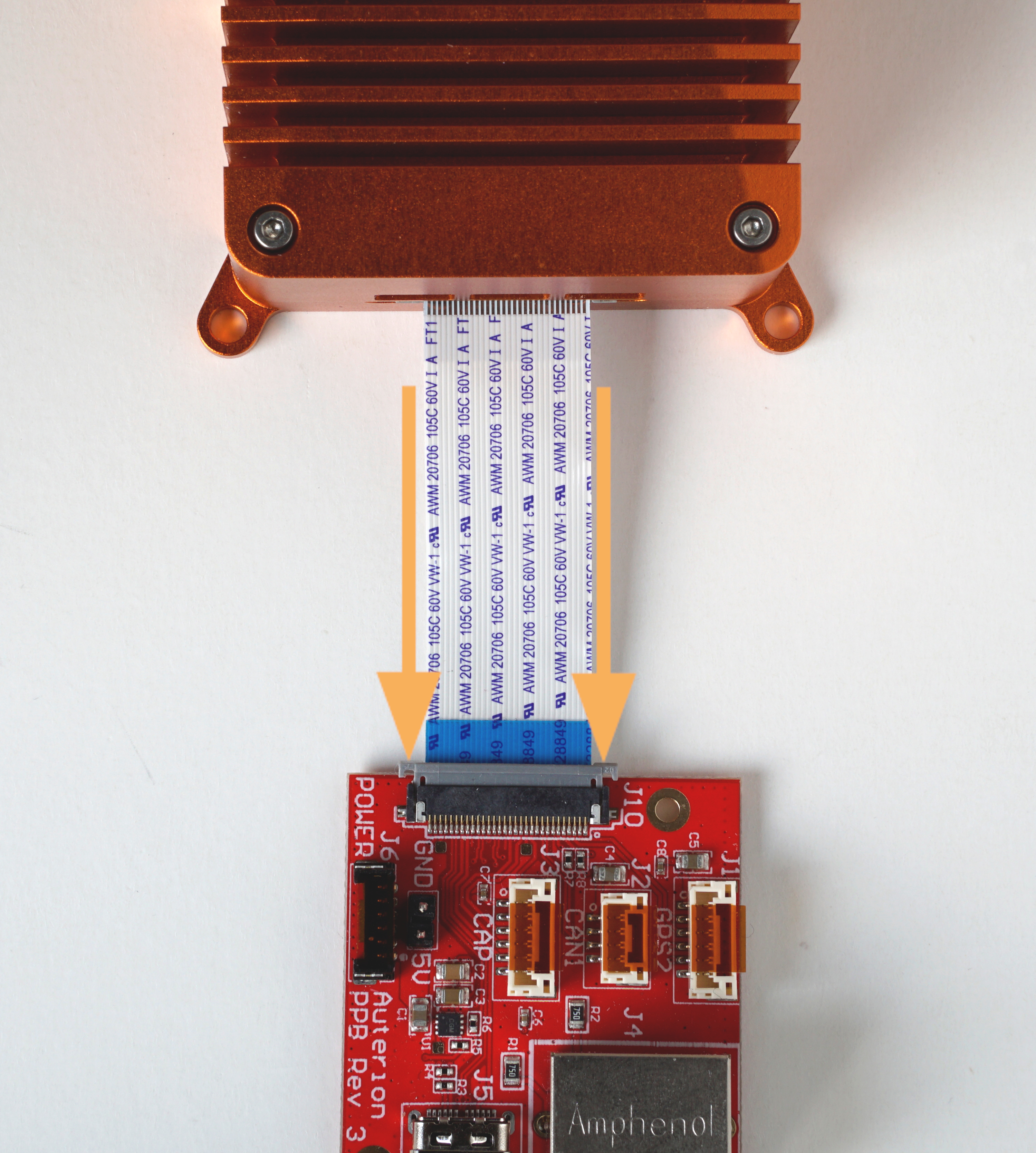

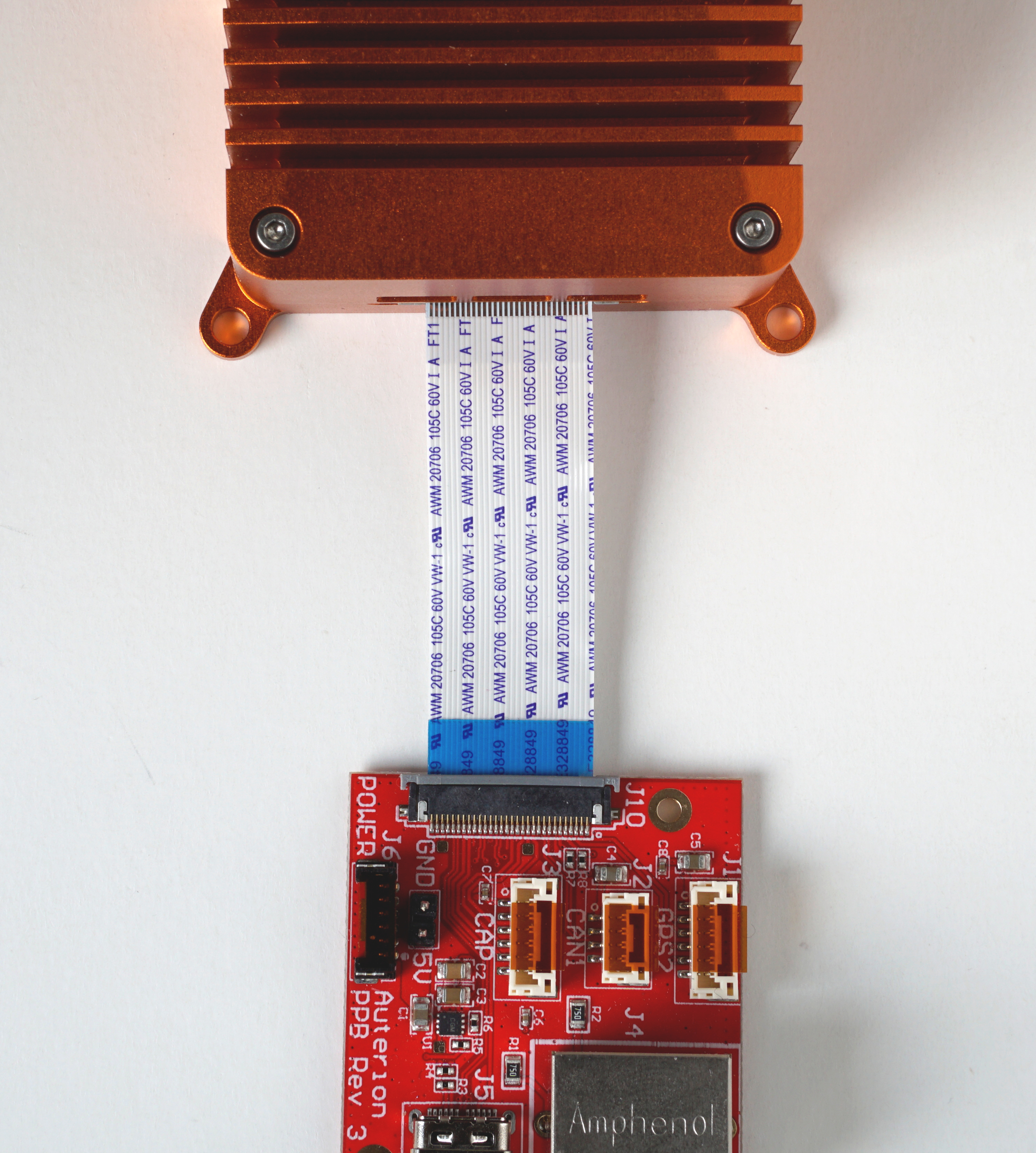

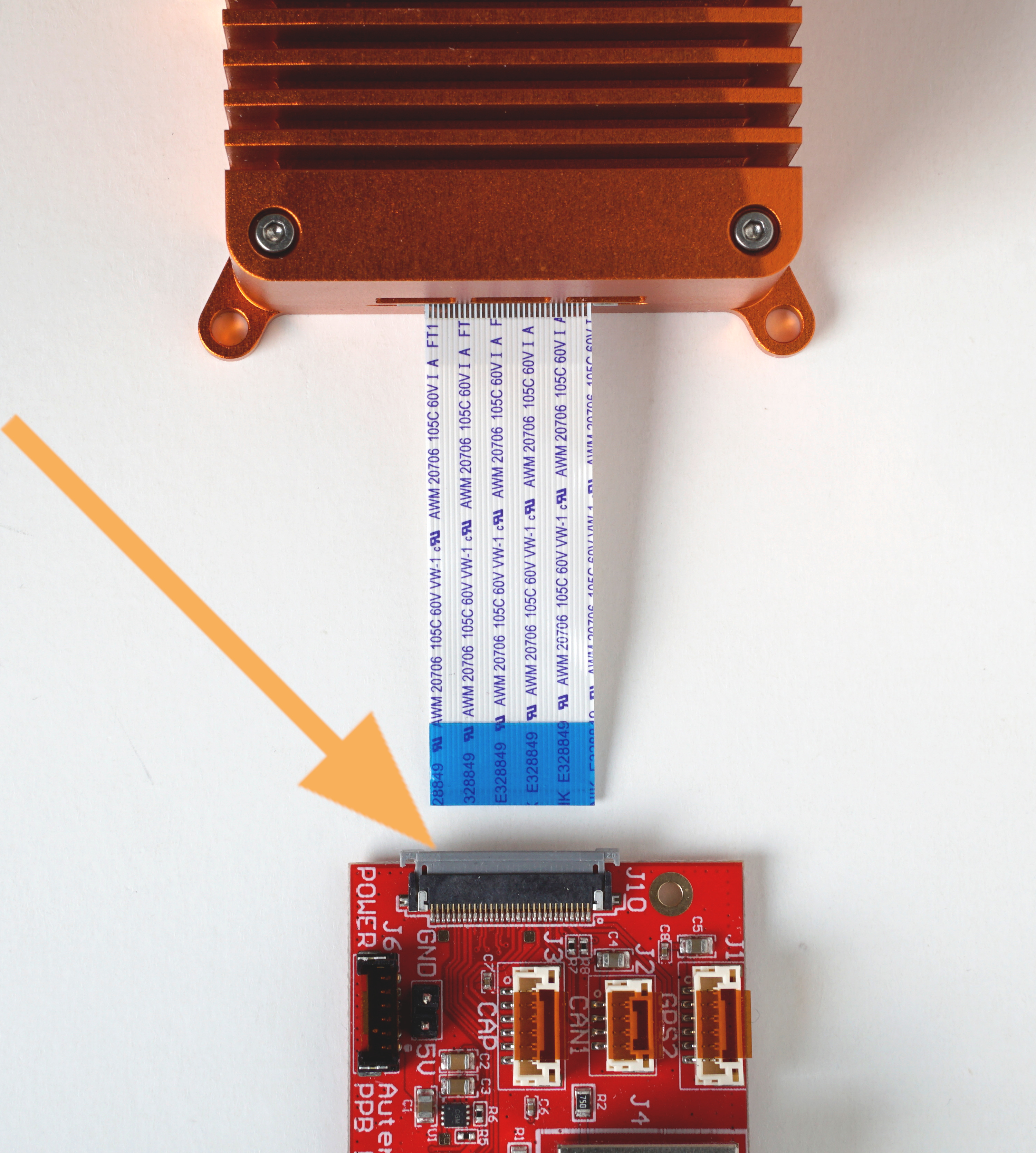

  • Connect FFC cable PPB Adapter Board

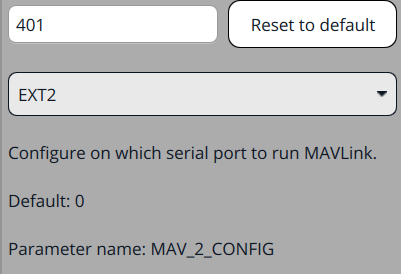

  • Configuration
  1. Hardware Integration
  2. Skynode
  3. Peripherals

Pixhawk Payload Bus

PreviousPixhawk Adapter BoardNextData Link Module

Last updated 9 days ago

The Pixhawk Payload Bus (PPB) Adapter Board board is used to break out the Skynode payload interface (J10) into connectors/pinouts that are compatible with the .

It is recommended to connect payloads to the PPB interface and use the standalone USB and Ethernet ports on Skynode for other peripherals and ground station links.

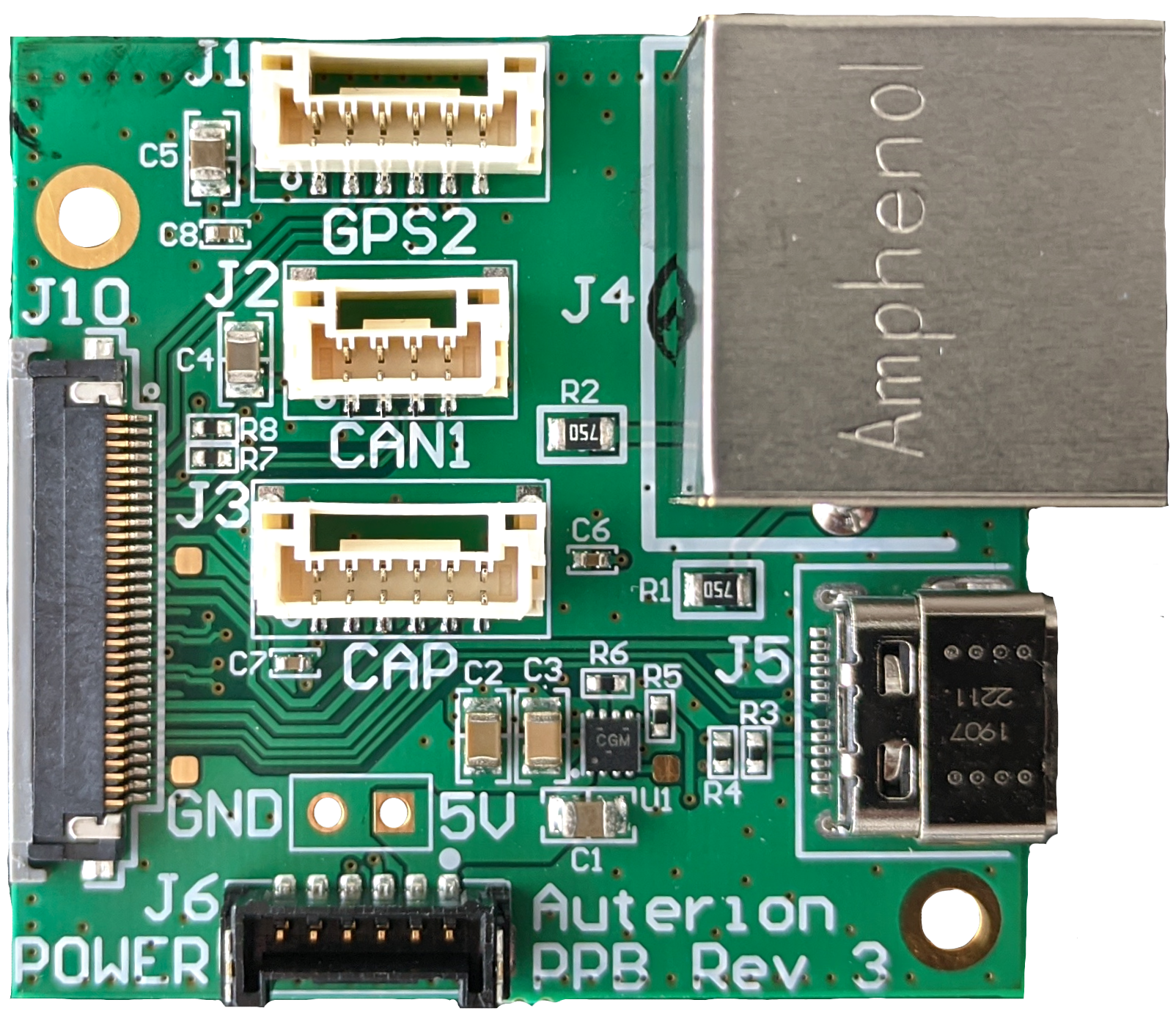

Schematic

Connectors

ID

Name

Connector

Description

J1

UART & I2C

JST GH 6-pin

SM06B-GHS-TB

UART4 and I2C from FMU

J2

CAN 1

JST GH 3-pin

SM02B-GHS-TB

CAN from FMU

J3

GPIOs

JST GH 6-pin

SM06B-GHS-TB

FMU CH 7 and CH 8, FMU CAP and one GPIO from MC

J4

Ethernet

RJ45 socket

J5

USB

USB Type-C

J6

Power

Molex Micro-Lock Plus 5055670681

Power for FMU peripherals (J1, J2 and J3)

J7

Power

Pads

Parallel input to J6

J10

PPB

SFV30R-3STBE1HLF

FFC interface to Skynode (J10)

Pinouts

GPS 2 (J1)

Pin

Name

Dir

Lvl

Function

1

VDD_5V_PERIPH_SW

5V

5V supply for peripherals, enabled with VDD_5V_PERIPH

2

FMU_UART4_TX

OUT

3.3V

Pixhawk Payload Bus TX

3

FMU_UART4_RX

IN

3.3V

Pixhawk Payload Bus RX

4

FMU_I2C3_SCL

I/O

3.3V

5

FMU_I2C3_SDA

I/O

3.3V

6

GND

Ground

I2C lines are pulled up with 1kΩ in Skynode. External pull up resistors shall not be added.

CAN 1 (J2)

Pin

Name

Dir

Lvl

Function

1

VDD_5V_PERIPH_SW

5V

5V supply for peripherals, enabled with VDD_5V_PERIPH

2

CAN1_P

I/O

FMU CAN 1

3

CAN1_N

I/O

FMU CAN 1

4

GND

Ground

GPIO (J3)

Pin

Name

Dir

Lvl

Function

1

VDD_5V_PERIPH_SW

5V

5V supply for peripherals, enabled with VDD_5V_PERIPH

2

FMU_CH7

I/O

3.3V

FMU Channel 7

3

FMU_CH8

I/O

3.3V

FMU Channel 8

4

FMU_CAP1_AUX

IN

3.3V

Capture

5

COMP_GPIO5_IO20_1V8

I/O

1.8V

GPIO from mission computer

6

GND

Ground

Ethernet (J4)

Please refer to the official pinout specification for RJ45 connectors.

The Skynode ethernet interfaces are decoupled with capacitors. The maximum cable length inside the payload should not exceed 2m and all connected devices should have a common ground.

USB (J5)

Please refer to the official pinout specification for USB Type-C connectors. The supported data rate is USB 2.0 High-Speed (up to 480 Mbit/s)

Power (J6)

Pin

Name

Dir

Lvl

Function

1

VDD_5V_INPUT

IN

5V

5V power supply input

2

VDD_5V_INPUT

IN

5V

5V power supply input

3

FMU_I2C3_SCL

I/O

3.3V

FMU I2C SCL

4

FMU_I2C3_SDA

I/O

3.3V

FMU I2C SDA

5

GND

Ground

6

GND

Ground

I2C lines are pulled up with 1kΩ in Skynode. External pull up resistors shall not be added.

Connecting the PPB Adapter Board

Skynode provides a single connector interface with all signals used in the Pixhawk Payload Bus on connector J10 and can be used with different mechanical designs.

The Skynode Evaluation Kit includes a small adapter board that converts the FFC interface of Skynode to standardized connectors for each interface. Connect the PPB interface on Skynode (J10) with the adapter board (J10) with the included 30-position FFC cable.

What you will need for this step:

  1. Skynode Enterprise

  2. Pixhawk Payload Adapter Board

  3. 30-position FFC cable

  4. Small tool, e.g. micro-screwdriver

The PPB connector (J10) is an FPC connector with slide lock (Part number SFV30R-3STBE1HLF, the same connector is installed on the PPB adapter board). The locking mechanism has to be pulled out before the cable is inserted.

Connect FFC cable to Skynode PPB Connector

To avoid damage to Skynode or connected peripherals, unplug the power source before continuing to connect the PPB Adapter Board.

  1. To secure the cable into the connector, push the locking latch back into its closed position. Use the tool or your fingers to apply pressure on the both sides of the latch.

Connect FFC cable PPB Adapter Board

Configuration

To star start an MAVLink instance on the Pixhawk Payload Bus, set the PX4 parameter MAV_2_CONFIG to EXT2.

CAN bus termination on Skynode changed in RC11. Prior to , Skynode has a 120Ω bus termination resistor inside, with no CAN termination on the breakout boards. This configuration assumed that Skynode was at the end of the bus. Rev 11 and onwards has the 120Ω bus termination resistor on the Adapter board, without built-in termination inside of Skynode. When designing instead of using the breakout boards, usage of a 120Ω termination resistors at both ends of the bus is mandatory, following ISO 11898.

In order to open the locking mechanism of the FPC connector, insert a small tool into the opening at the side of the connector.

Carefully pull the wing of the locking mechanism towards you and out of the enclosure.

Repeat the previous two steps on the left side and completely unlock the connector.

Next, insert the 30-position FFC cable into the connector. To do so, place the FFC cable on top of the locking latch with the contacts facing up and slide it into the connector.

On the PPB adapter board, open the locking mechanism of the FPC connector and place the board next to Skynode.

Slide the FFC cable into the connector, the contacts are facing down on this side.

Close the locking mechanism by pushing back the latch (see arrows on the left).

rev 11
a wire harness
Pixhawk Payload Bus (PPB) Standard
1MB
Payload Adapter Board.stl
3D model mockup
249KB
PPB-Adapter_RC03.pdf
pdf
PPB Adapter RC03
