  • Create a Corridor Scan Mission
  • Corridor Scan editor
  • Camera Tab
  • Grid Tab
  1. Vehicle Operation
  2. Auterion Mission Control
  3. UI Breakdown
  4. Plan View
  5. Plan tools
  6. Survey Patterns

Corridor Scan

PreviousArea SurveyNextMission Summary

Last updated 1 year ago

A Corridor Scan is a for surveying roads, rivers and other path-like ground features. It creates a grid flight pattern that follows a poly-line.

A corridor scan mission must contain at least one Corridor Scan pattern. The corridor is a path marked out on the map (shaded in green above). The white line indicates the grid flight path. The green circular markers indicate the points where the vehicle enters and exits the pattern.

The Mission editor on the right is used to set the corridor: width, altitude, required image resolution, and other properties, and to specify camera settings appropriate for creating geotagged images.

This topic shows how to define a corridor scan mission and the various settings that can be configured in the Corridor Scan Editor.

Create a Corridor Scan Mission

The easiest way to define a corridor scan mission is to use the Plan view > Pattern > Corridor Scan tool from the Plan Tools.

This creates a template for a simple end end-to-end structure corridor scan mission for the current vehicle type. Often all the user has to do is define the scan area (any items that require configuration are shown with a red border in the mission item list).

If a more complex mission is needed, the basic mission can be extended by adding other items before the return item.

To create a corridor scan mission:

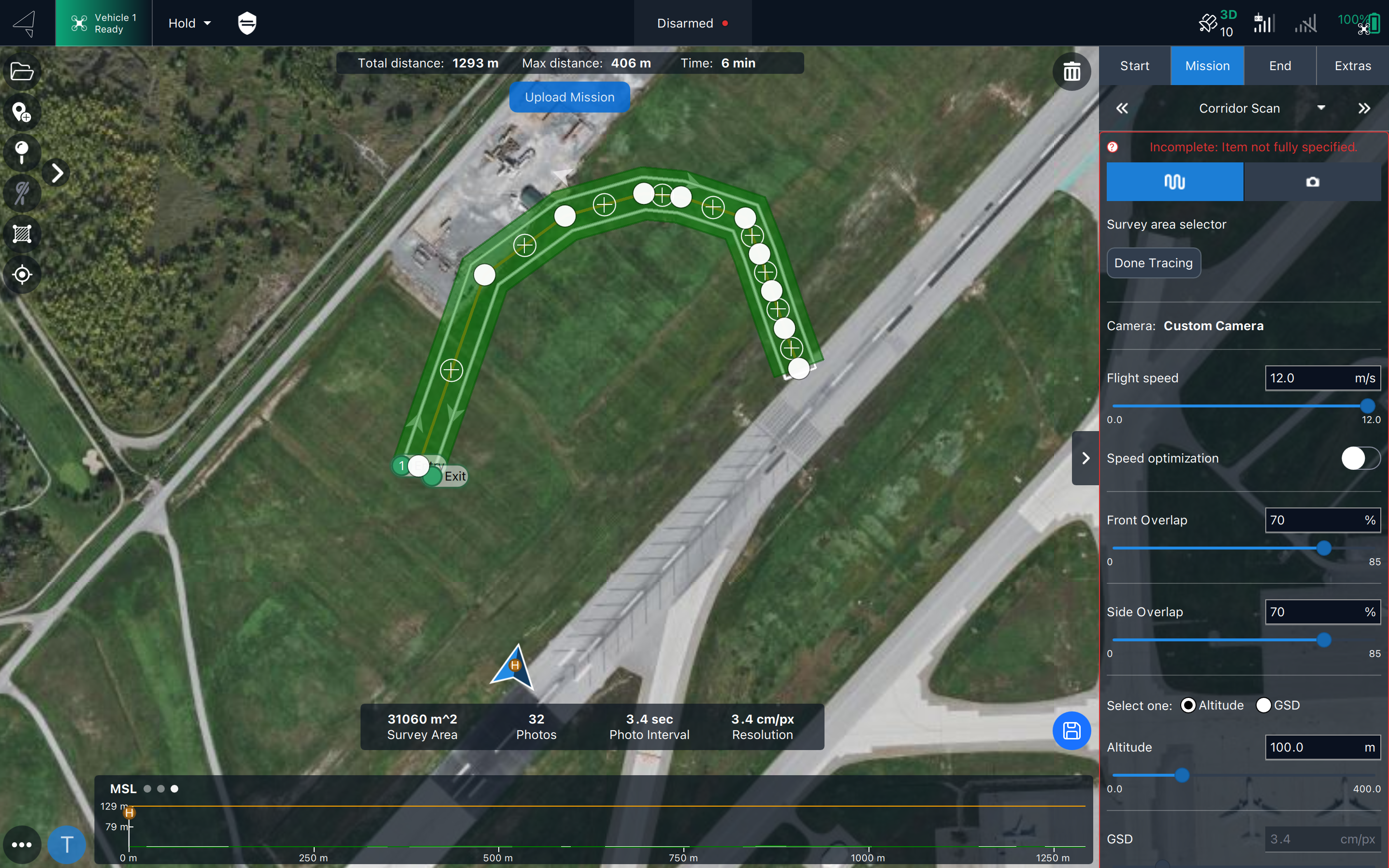

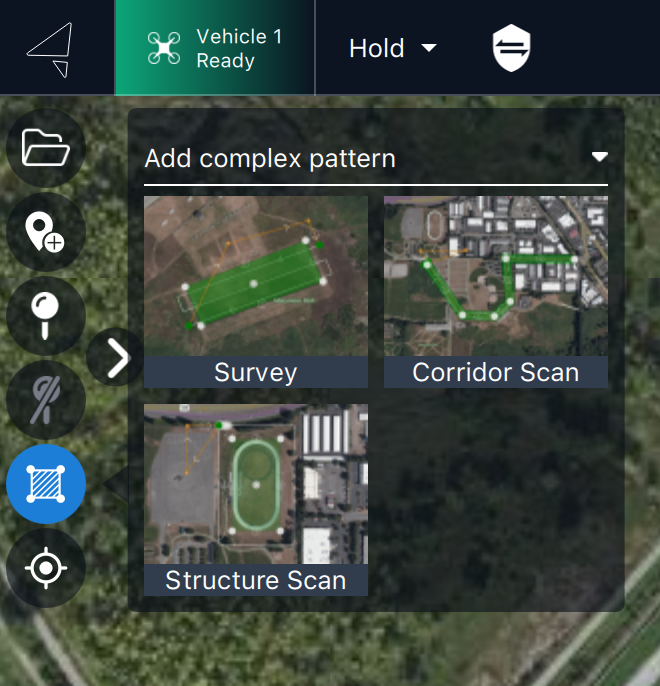

  1. Open the Plan View, select the Pattern and then Corridor scan. \

  • The green part of the line is the area being scanned while the white line is the proposed flight path.

  • Move a filled circle (vertices) at one end of the line to the beginning of the desired path, and the other to the end (drag/drop on the map).

  • Select the unfilled circle between the two ends (vertices) to create a new vertix. Move the vertix to the first point in the path where the direction changes.

  • Repeat the last step, creating new vertices and moving them onto the desired path.

Corridor Scan editor

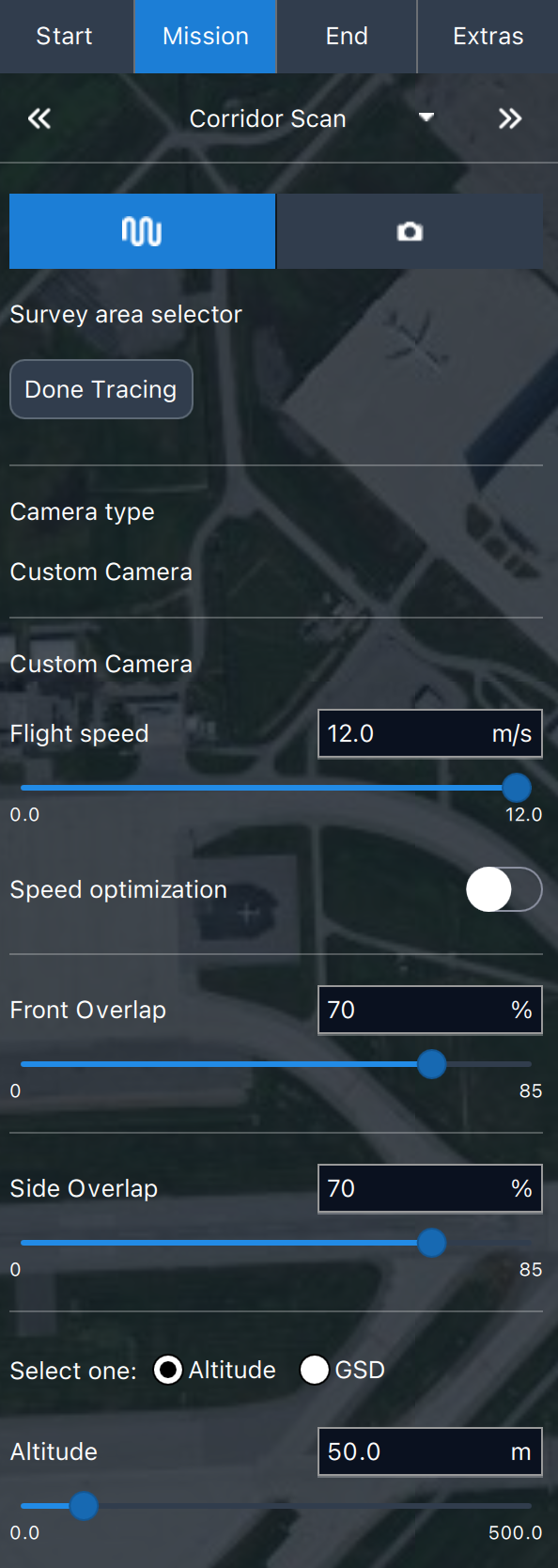

The Mission _Editor_ is used to configure Camera and Grid settings. The trash/bin icon on the top left can be used to delete the whole item.

  1. Select the Mission tab to edit your Corridor scan pattern.

Set the camera first, before configuring the grid (camera capabilities affects the grid settings).

Camera Tab

Users can select a predefined, custom, or manual camera. The main difference is that using a predefined or custom camera allows Mission Control to calculate an optimal layer height for a trigger distance, and visa versa, while using a manual camera means that these parameters need to be manually calculated (and are therefore harder to change).

Grid Tab

The Grid tab is used to set the properties of the scan.

For a predefined or custom camera the scan settings allow users to choose a desired image overlap and set either desired scan altitude or image resolution for the ground surface (automatically calculating the other value).

Setting
Description

Overlap

Overlap between each image capture. This can be configured separately for when flying along grid lines (Front Lap) or across them (Side Lap).

Altitude

Survey altitude. The Ground Res field is dynamically updated with the resolution required for entered altitude.

Ground Res

Ground resolution for each image. The Altitude field is dynamically updated with minimum value to achieve the entered resolution

For a manual camera, the grid settings are instead specified as shown. Note that if any of these settings need to change, then they may all need to be manually recalculated.

Setting
Description

Altitude

Altitude to fly the whole path.

Trigger Distance

Distance over ground between each camera shot.

Spacing

Distance between adjacent grid (flight path) lines across the corridor.

Corridor Panel

The Corridor section is used for grid settings that are independent of the camera. Changes in the settings are reflected in the map.

Setting
Description

Width

Set the width of the scan around the polyline that defines the path.

Turnaround dist

Additional distance added to the outside the survey area for vehicle turn around.

Options

  • Images in turnarounds: Take images when turning/outside of grid.

  • Relative altitude: Check to specify relative altitude (relative to home location). This is only supported for manual grids that are not using terrain following.

Rotate entry point

Button toggles (swaps) the entry and exit points of the scan.

Terrain Panel

Terrain Following makes the vehicle maintain a constant height relative to ground throughout the scan (by default, a flying vehicle will follow the corridor path at a fixed altitude).

Terrain following uses terrain heights queried from AirMap servers.

Setting
Description

Vehicle follows terrain

Check to enable terrain following (and display the following options).

Tolerance

The accepted deviation in altitude from the target altitude.

Max Climb Rate

Maximum climb rate when following terrain.

Max Descent Rate

Maximum descent rate when following terrain.

Statistics Panel

The Statistics section shows the calculated survey area, photo count, interval, and resolution.

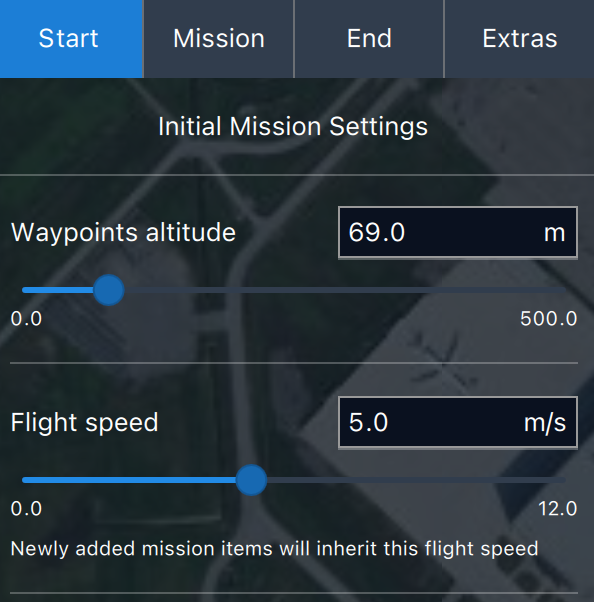

Check that the item settings are correct for the planned scan. In particular, the altitude (Waypoint altitude) is high enough to avoid obstacles when travelling to the corridor.

The camera settings are exactly the same as for surveys and structure scans. For more information see: .

mission plan
Survey > Camera
Mission Start
Corridor Scan Camera Settings: Manual Camera
Corridor Scan Grid Settings: Predefined/Custom Camera
