LTE Setup
SIM Card insertion/replacement

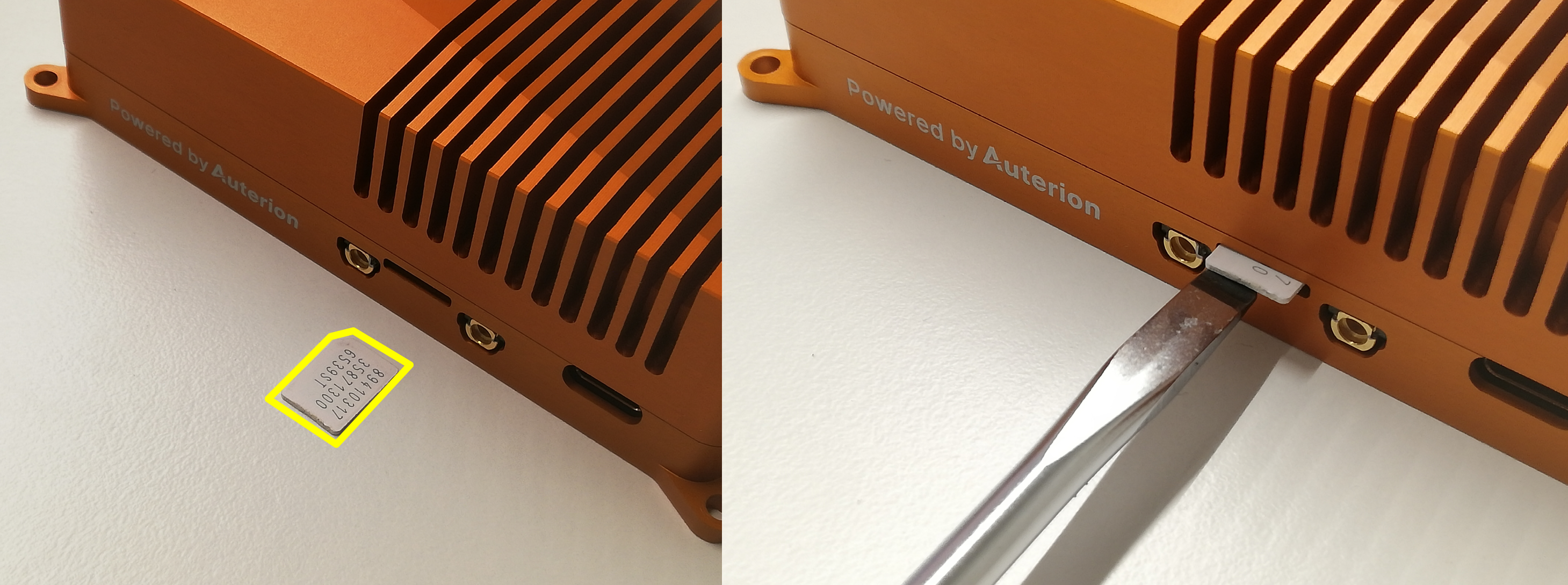

Insert your SIM card into the SIM Card slot with the chip contacts facing downwards (refer to the image below). The SIM card is recessed into the enclosure and you might need a tool to push it into the socket. You should hear a click when the SIM card is inserted properly. To remove the SIM card, push the card inwards using a tool. You should hear a click and the card will be ejected from the enclosure.
Software Configuration
The LTE modem is configured through Auterion Mission Control under the tab Vehicle Setup > Cellular
The settings presented in this menu are
Enable LTE (checkbox): Select to enable
Connected to modem: Green (Connected) | Red (Disconnected)
APN (Access Point Name): APN name for your cellular data plan depends on the provider
Allow Roaming: Select to enable if you want to allow connections to a cellular network that is not your service provider
Enable PIN: Select to use a SIM card PIN. Note that the PIN is not stored and has to be entered on every boot when enabled
Access Point Names
The table below lists typical APN names for existing Skynode users. If your carrier is not listed, please contact their support or check their website to obtain the correct setting.
| Carrier | APN |
|---|---|
Orange (global) | orange.m2m.spec |
T-Mobile (US) | fast.t-mobile.com |
AT&T (US) | NXTGENPHONE |
Verizon (US) | vzwinternet |
Bell (CAN) | pda.bell.ca |
Telus (CAN) | sp.telus.com |
Rogers (CAN) | ltemobile.apn |
Freedom Mobile (CAN) | internet.freedommobile.ca |
Digitalrepublic (CH) | dr.m2m.ch |
Sunrise (CH) | internet |
