Connectivity

Overview

Access this page via the navigation bar: Vehicle Overview → Connectivity → Wi-Fi.

The Connectivity page has two tabs: Wi-Fi and LTE. The LTE tab only appears if the Vehicle has an LTE modem.

Wi-Fi Station Mode

1. Start AMC before powering up the Vehicle. The Wi-Fi page loads until the Vehicle's Wi-Fi module starts, which takes about 30 seconds.

Network list

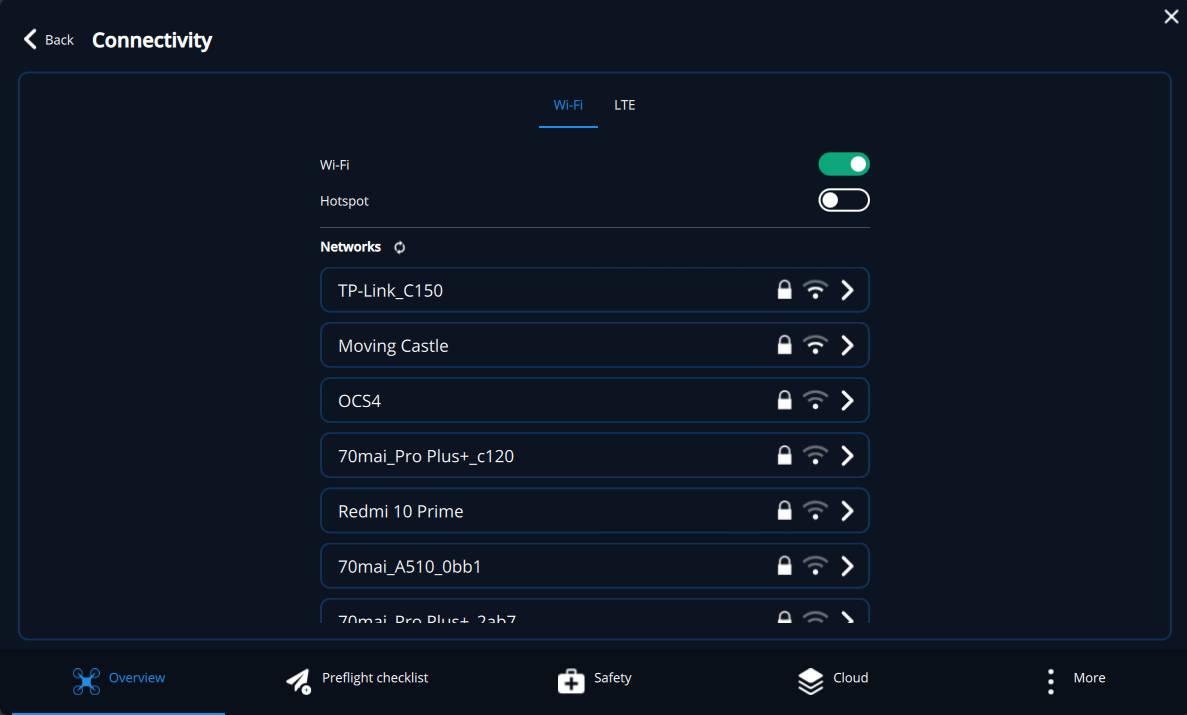

1. When loading completes, AMC displays a list of available networks.

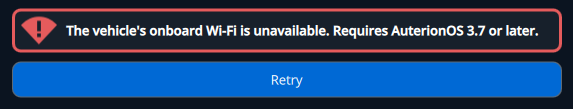

If you didn't start AMC before powering up the Vehicle, the Wi-Fi page may take longer to load. If loading fails, AMC displays an error message. Check the AuterionOS version on the Vehicle, then retry.

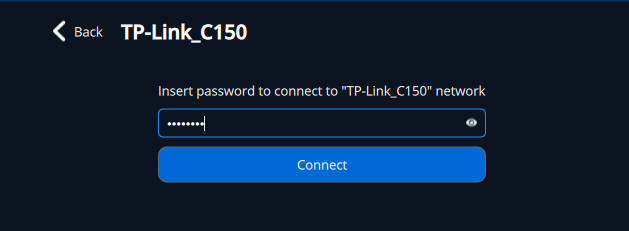

1. Select the network, enter the password, then select Connect.

1. The Vehicle attempts to connect to the Wi-Fi network. On success, the network status shows Connected.

Wi-Fi Hotspot Mode

1. Turn on the Hotspot toggle.

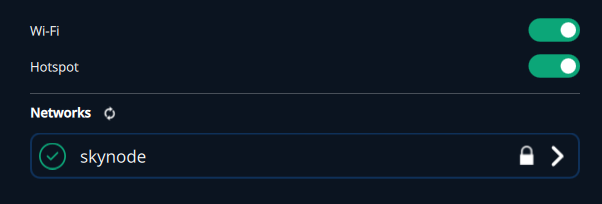

1. The Vehicle switches to hotspot mode. On success, the hotspot appears in the Networks area.

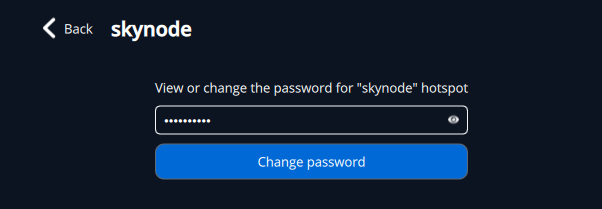

2. Select the available skynode hotspot to view or change the password.

1. To view the hotspot password, select the eye icon.
