Evaluation Kit

PreviousDatasheetNextPower AI Node

Last updated 3 months ago

This section contains information about components of the AI Node Evaluation Kit.

Overview

Supported Components

The contents of our evaluation kit can slightly change in the future as we adapt to availability on the market and our customer's needs. The actual list of parts in your kit will be visible on the quote you'll receive. This is a list of all components that were in the evaluation kit at some point, and therefore compatible with AI Node.

Part Number
Description

900-00022 rev 2

AI Node

830-00024

rev 7

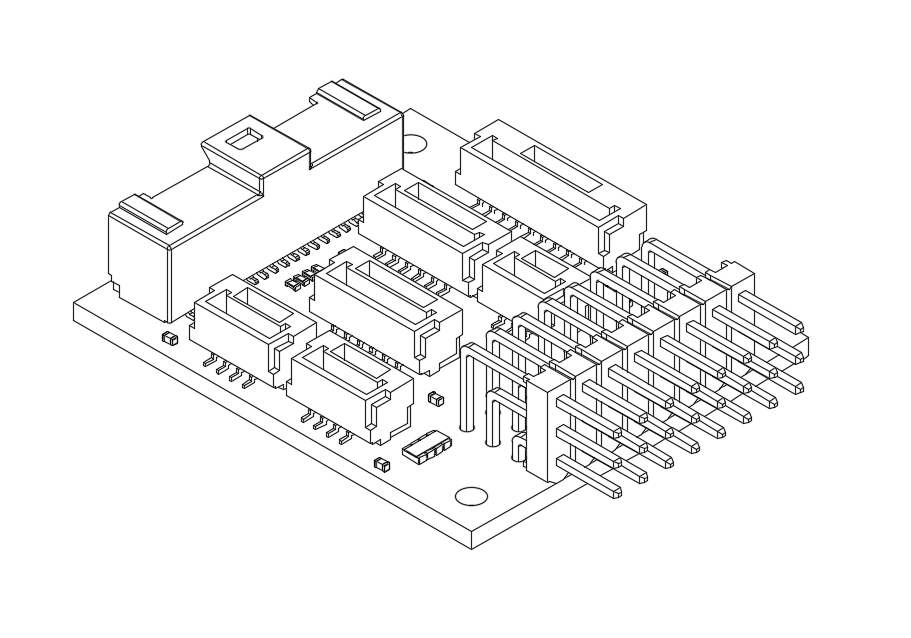

AINODE ADAPTER BOARD

115-00037

rev 04

IO CABLE Molex Pico-Clasp 40-pin (AI Node to Pixhawk adapter board cable)

880-00023

rev 1

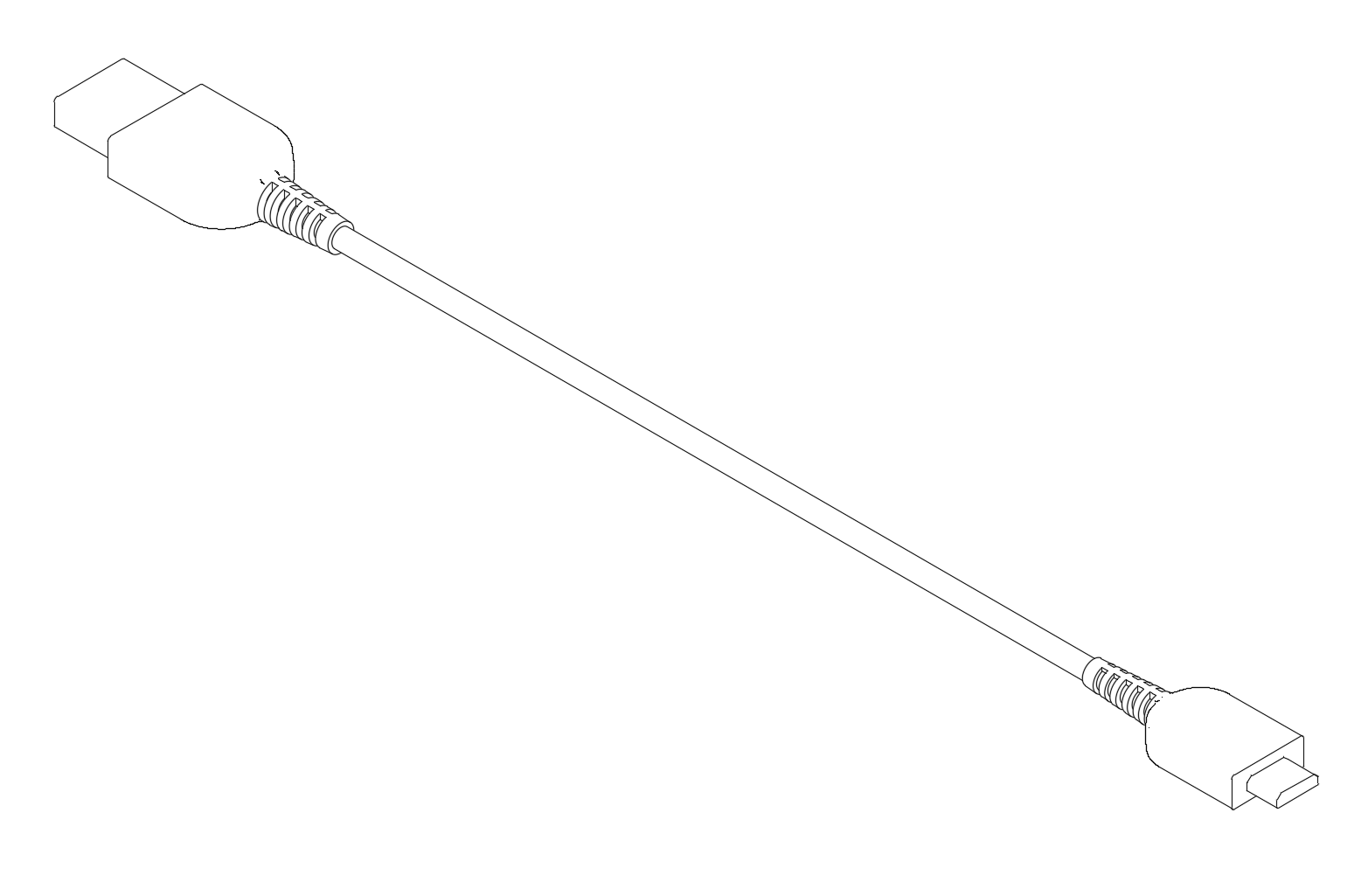

Micro USB Micro USB to USB-A (AI Node to ground station cable for developers)

161-00003

rev 01

115-00039

rev 04

AINODE PWR Power cable for XT60 supply

115-00032 rev 01

ETH DEVELOPER Cable JST GH 9-pin to RJ45 (Ethernet to developer host)

115-00034 rev 01

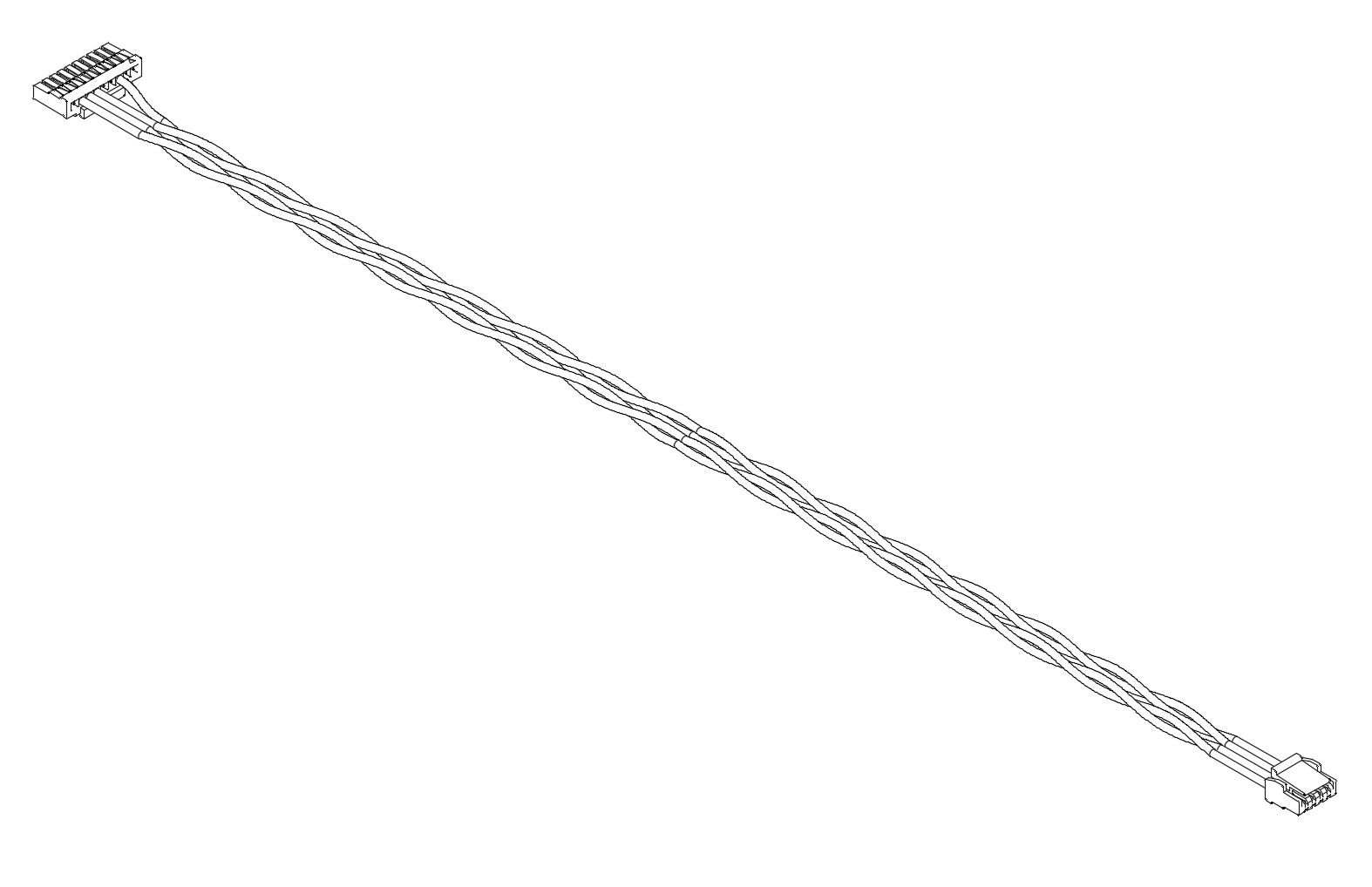

ETH SKYNODE Cable JST GH 9-pin to JST GH 4-pin (Ethernet connection between AI Node - Skynode, and AI Node - Microhard)

115-00038 rev 01

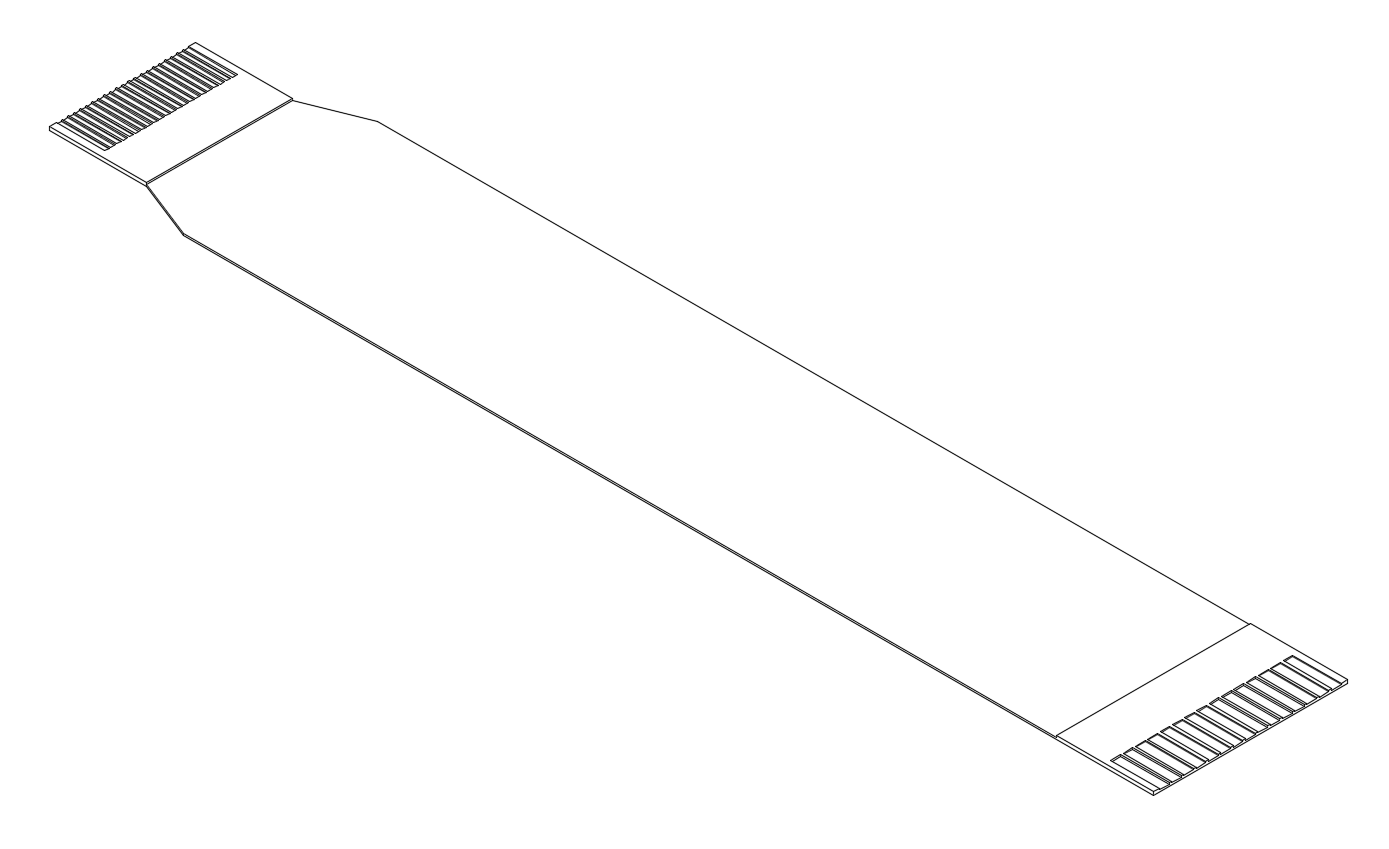

CAMERA CABLE Cable, FFC Raspberry Pi Zero V1.3 MIPI CSI camera, 150mm

870-00005 rev 01

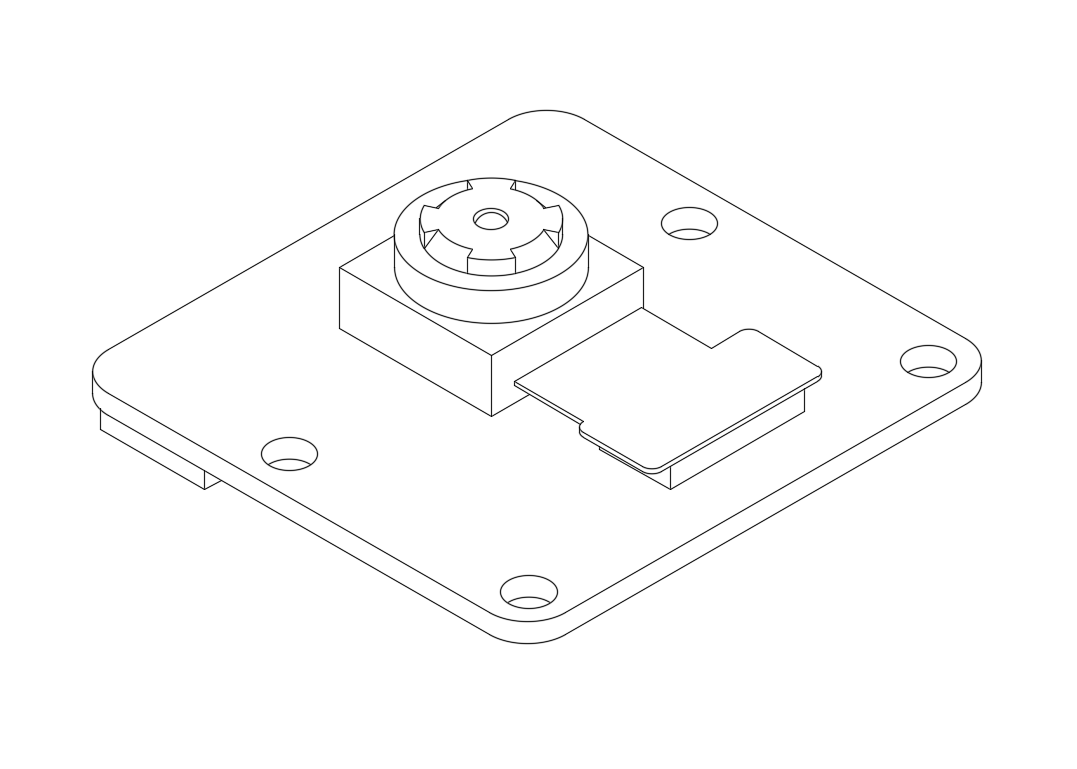

CAMERA Sensor, Camera Module, Raspberry Pi v2

880-00021 rev 01

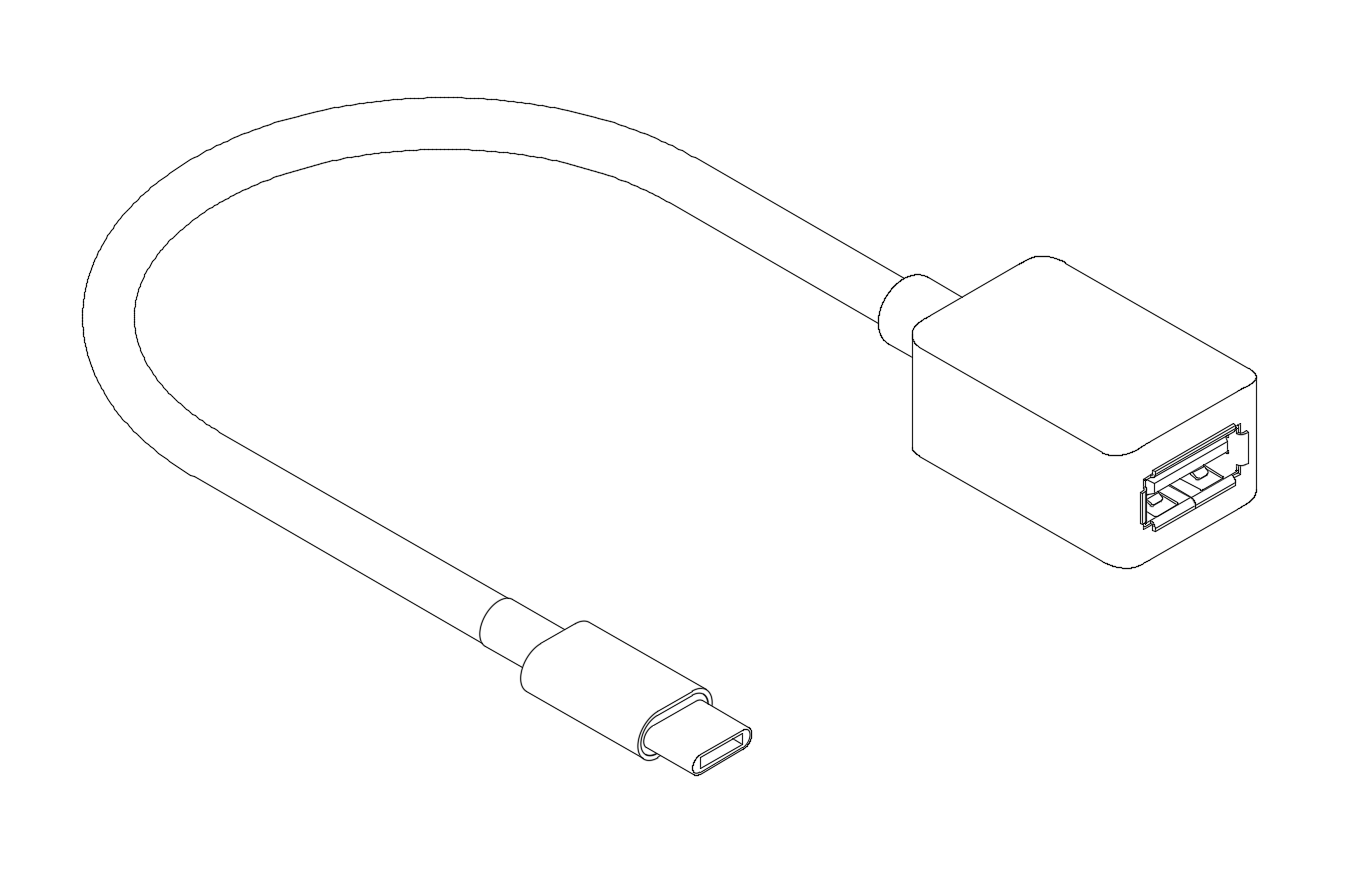

USB ADAPTER Adapter, USB 3.0 A to USB-C (OTG)

115-00036 rev 01

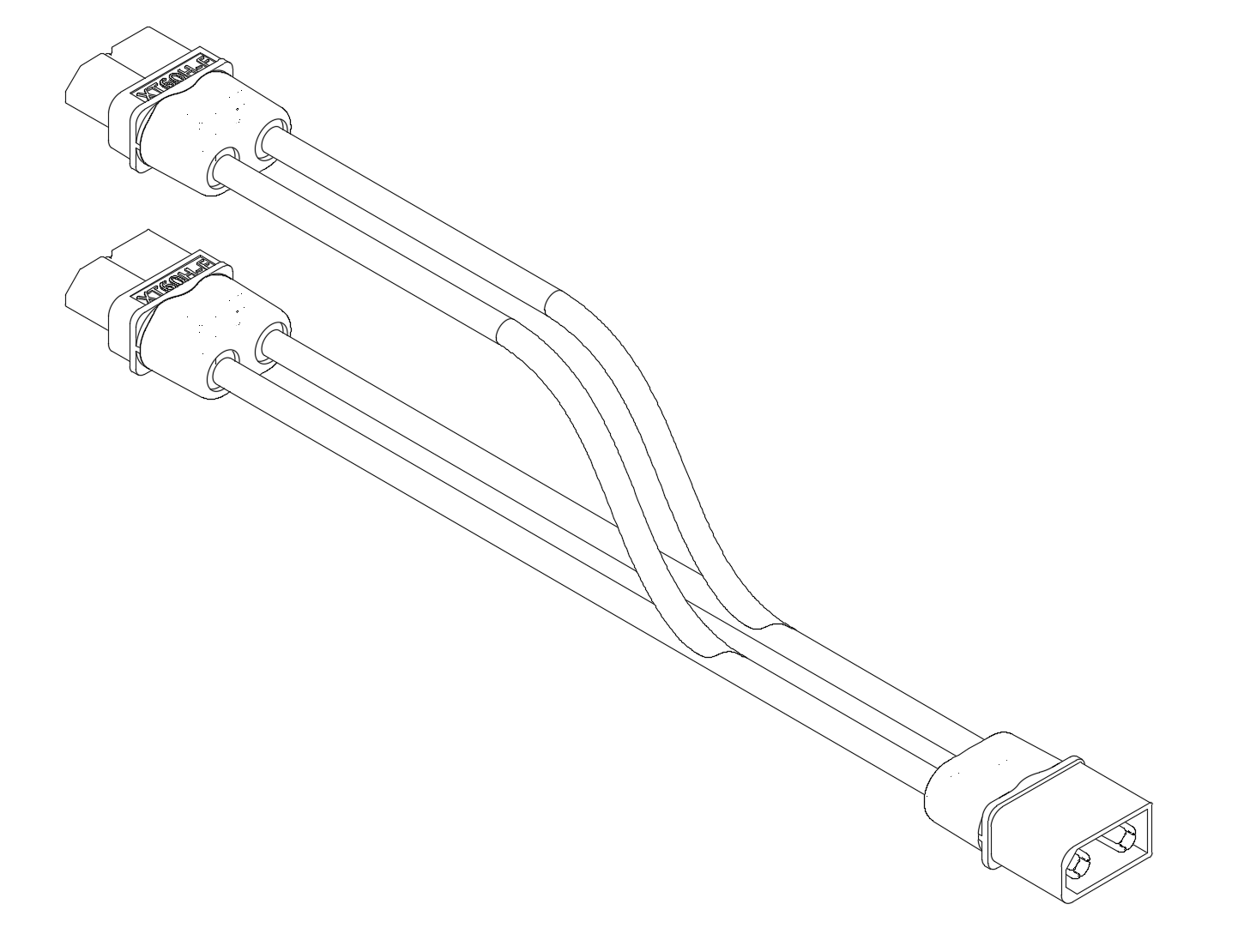

PWR ADAPTER XT60 Parallel Splitter 1m2f

Used to break out the AI Node IO port into compatible connectors/pinouts.

USB webcam manufactured by ELP

Pixhawk-standard
CAMERA

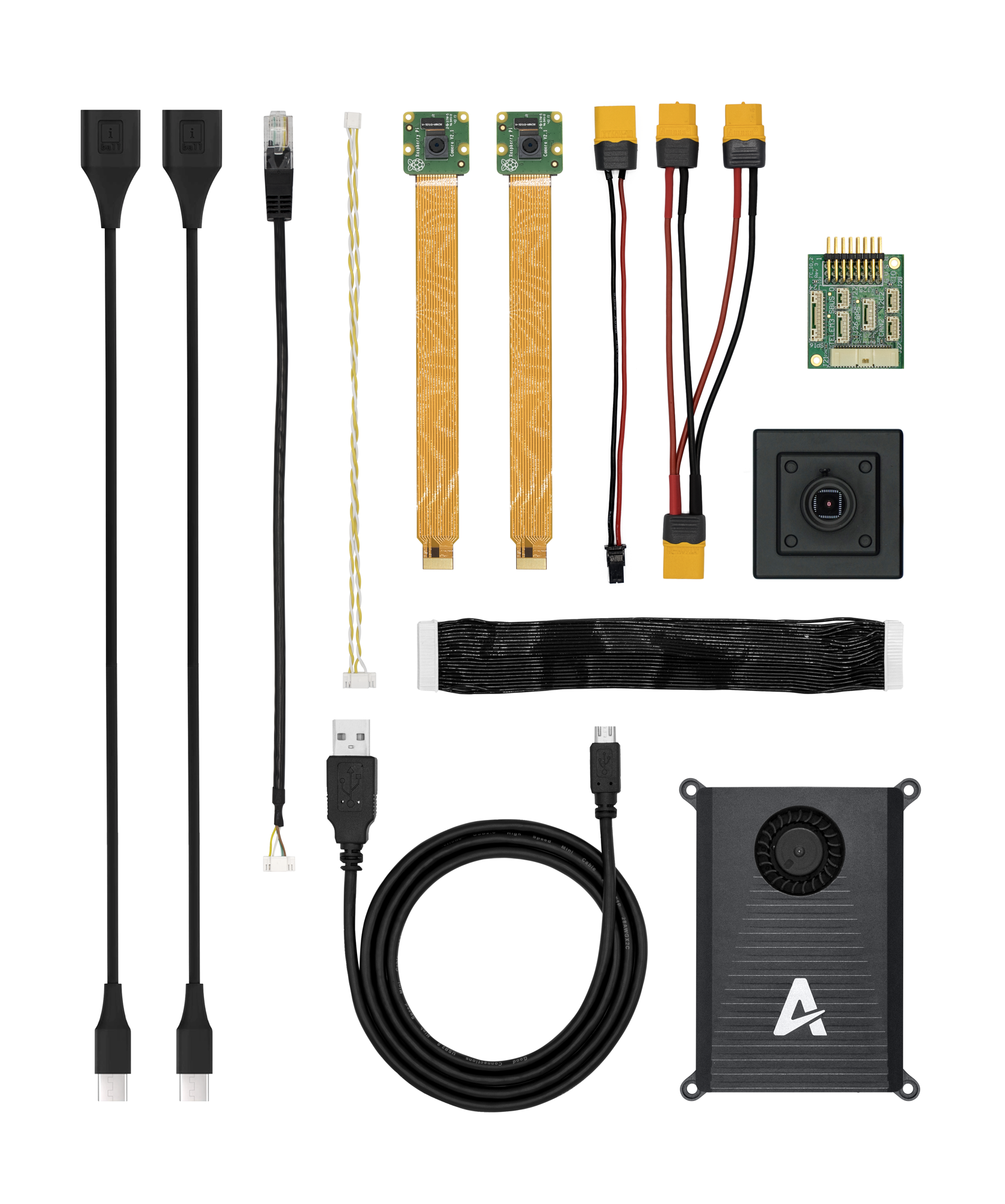

Contents of the AI Node Evaluation Kit
