Mission Cloud Sync

PreviousMission PlanningNextTerrain Following

Last updated 5 months ago

This feature enables users to sync missions seamlessly from any device using AMC to the Auterion Suite.

You can create a mission remotely from your computer and authorise immediate availability to pilots within your organisation. Once the upload is complete, the pilot can download and execute the mission while positioned at the mission's location.

In addition it gives you the ability to create standardized missions, which can be applied to various compatible vehicles. Pilots can make on-site adjustments to adapt missions to the terrain conditions effectively.

Set-up

Make sure the platform running AMC is connected to the internet and you are logged into your .

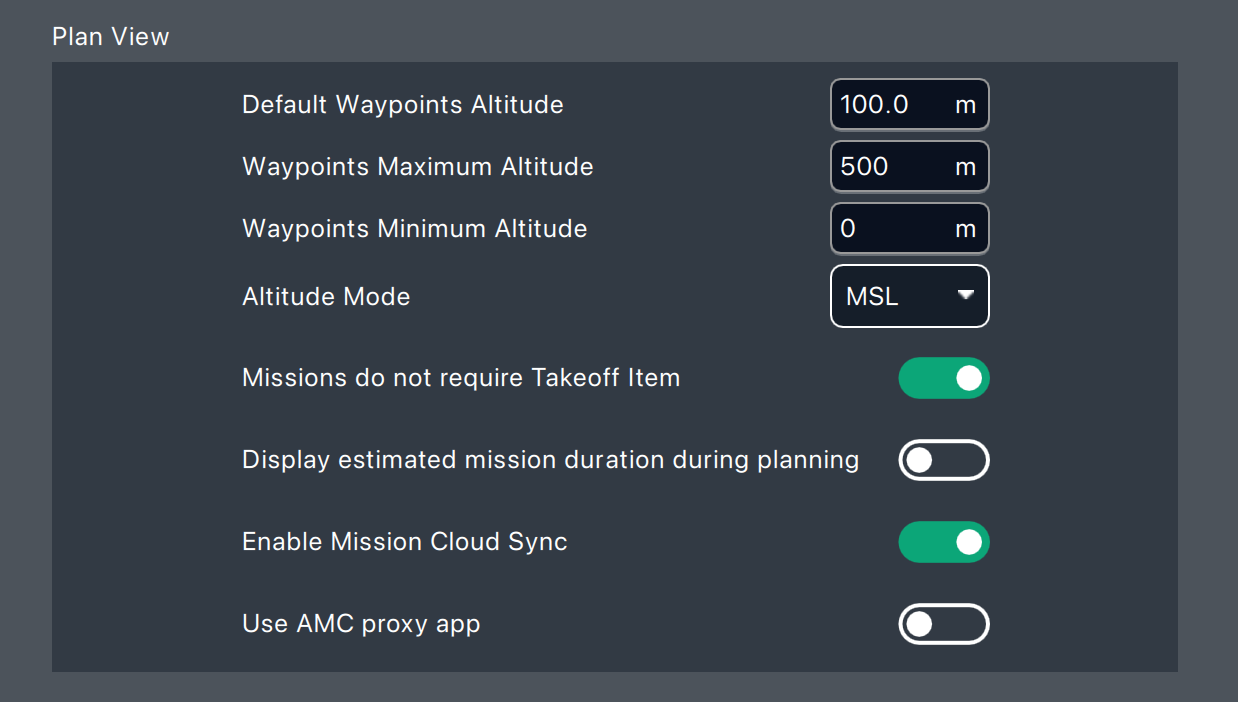

In the Settings menu, under Plan View, locate the option "Enable Mission Cloud Sync" and verify this setting is enabled.

Accessing your missions

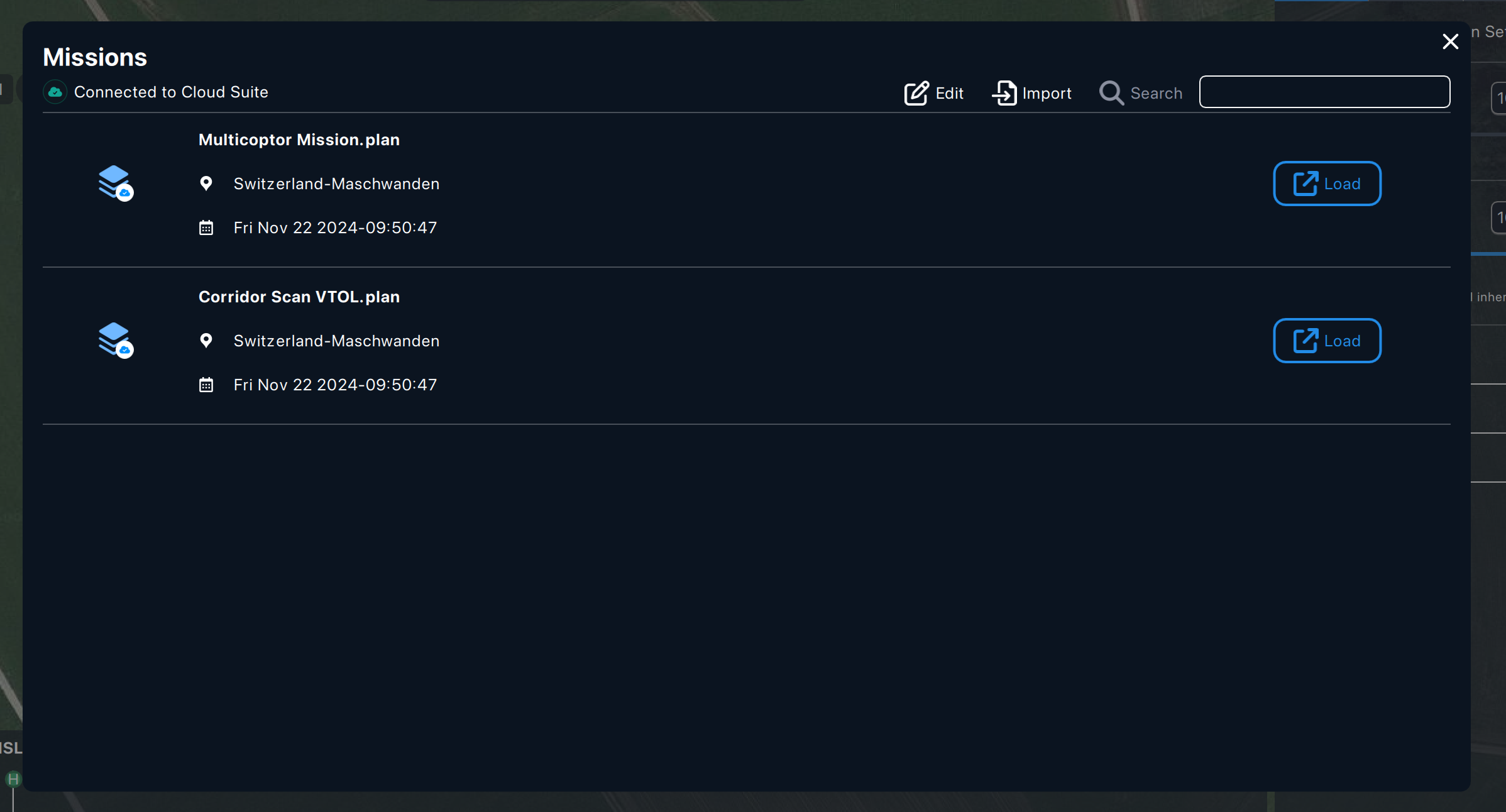

Once enabled, you will gain access to the missions stored in your company's Auterion Suite. Navigate to the Plan menu and select "Missions" from the top bar.

The connectivity status to the Suite is displayed in the top-left corner.

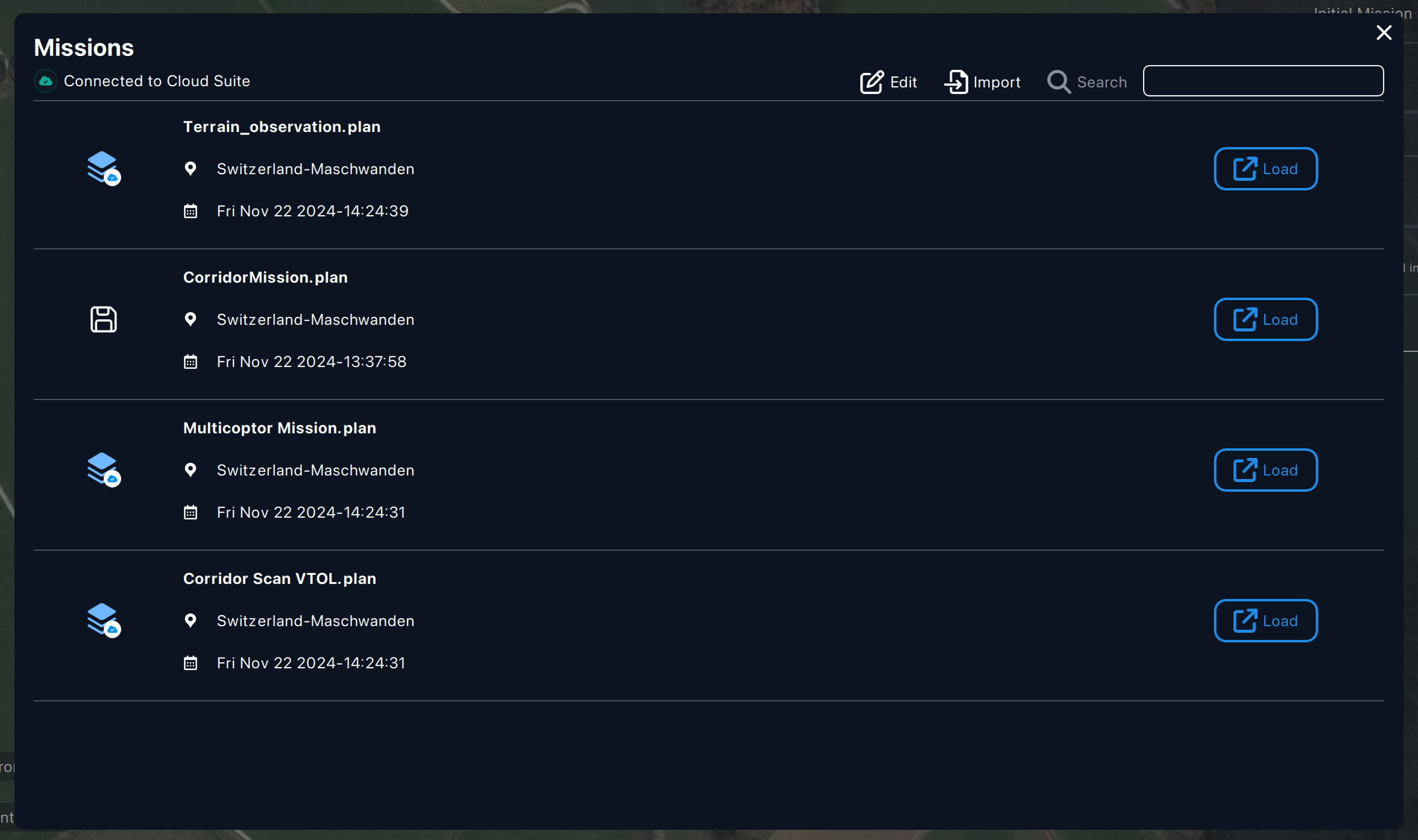

While connected to the Suite, any new missions or adjustments to an existing mission that you "Save" will be stored in the Suite.

Stored mission on Auterion Suite

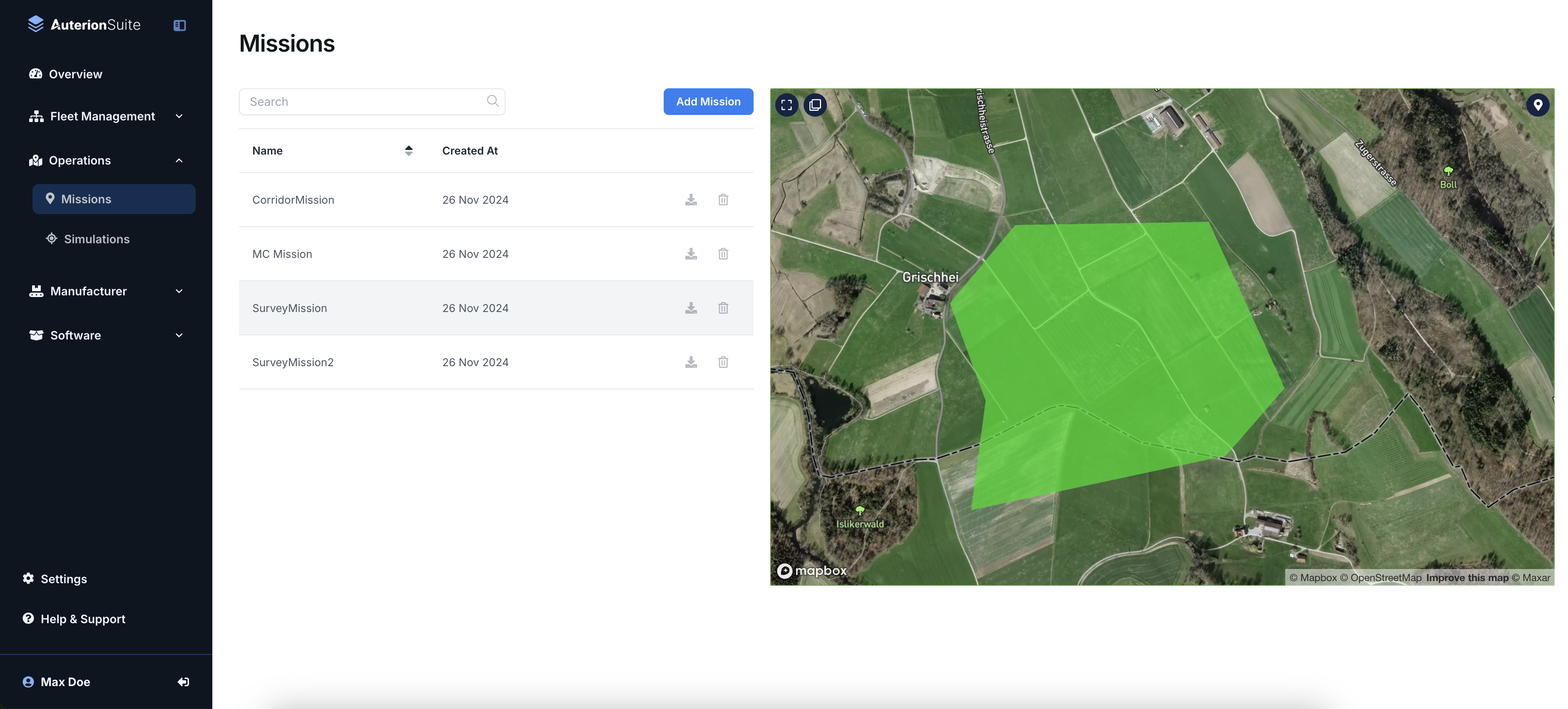

When logging into your Auterion Suite Account via a web browser, you can find all stored missions by navigating to "Operations" and opening "Mission".

Additionally you have the option to download or upload missions locally as .plan files.

The remaining functionalities are consistent with the descriptions in .
