Vehicle Serial Number

How the vehicle Serial Number for RemoteID is generated

As of AuterionOS 2.5.5, the vehicle's default serial number in Remote ID uses Auterion's registered manufacturing code, followed by a single character indicating the length of the device serial number, followed by the device serial number itself.

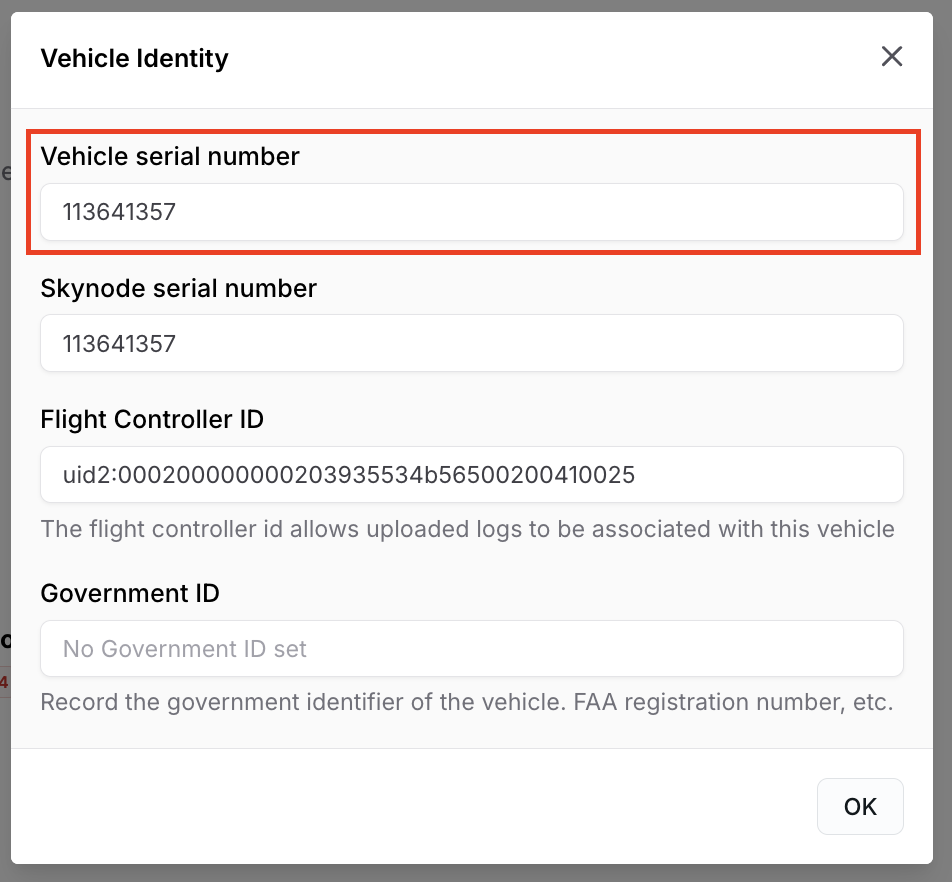

The device serial number corresponds to the Vehicle serial number string set in the Auterion Suite:

The Vehicle serial number string can be configured by the manufacturer up vehicle's activation.

Bit Position	Example Content	Meaning
0-3	1726	Manufacturer code. Every manufacturer needs to request a manufacturer code.
4	9	The length of the Vehicle serial number, in Hexadecimal format.
5-13	123456789	Vehicle serial number Max Length 16 digits.

The resulting vehicle serial number from the example above looks like: 17269123456789

In AuterionOS 2.7 OEMs are able to override the manufacturer code with a custom value, in addition to configuring an extra custom ID. See the following page for more details:

Remote ID configuration
