# Setup automatic log upload

<figure><img src="https://3329189600-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FFW1Ge1p1f6WHyiYCb146%2Fuploads%2Fgit-blob-d2889e651fe0f3c6a50f64f62e7e276443af95e4%2Fezgif-1a6800544ec404.gif?alt=media" alt=""><figcaption></figcaption></figure>

{% hint style="danger" %}
Auterion Suite activation and log upload features are available in combination with **AuterionOS v4+** and **Auterion Mission Control (AMC) v1.36+**
{% endhint %}

1. Ensure the vehicle is registered on Auterion Suite.\

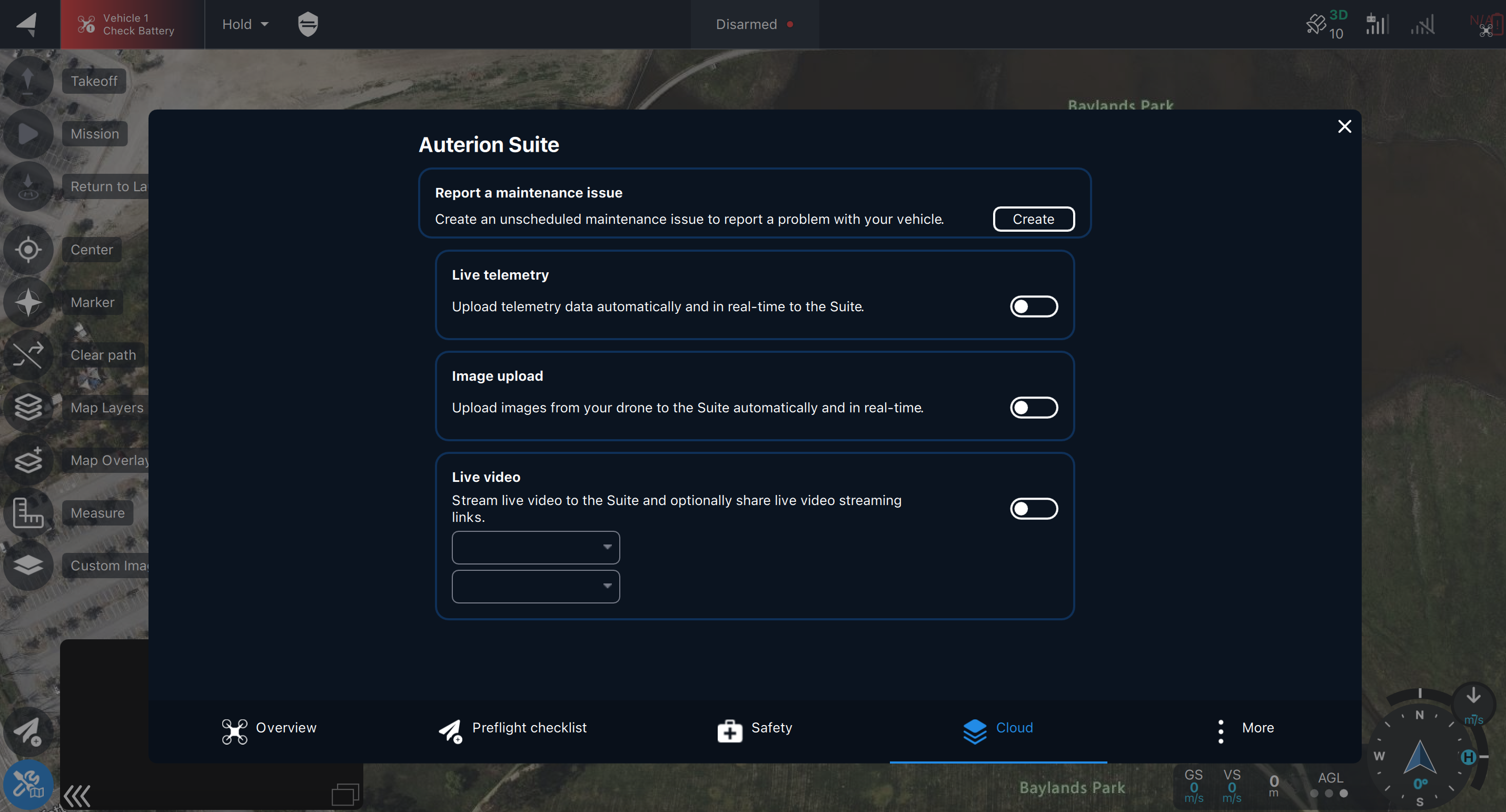

   Click the vehicle status indicator on the status bar and navigate to the Cloud menu. If the vehicle is activated, you will see the following options:

<figure><img src="https://3329189600-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FFW1Ge1p1f6WHyiYCb146%2Fuploads%2Fgit-blob-ae7238238cc41505edac5ba76869a390bf33bf1d%2FScreenshot%202025-03-12%20at%2010.49.44.png?alt=media" alt=""><figcaption></figcaption></figure>

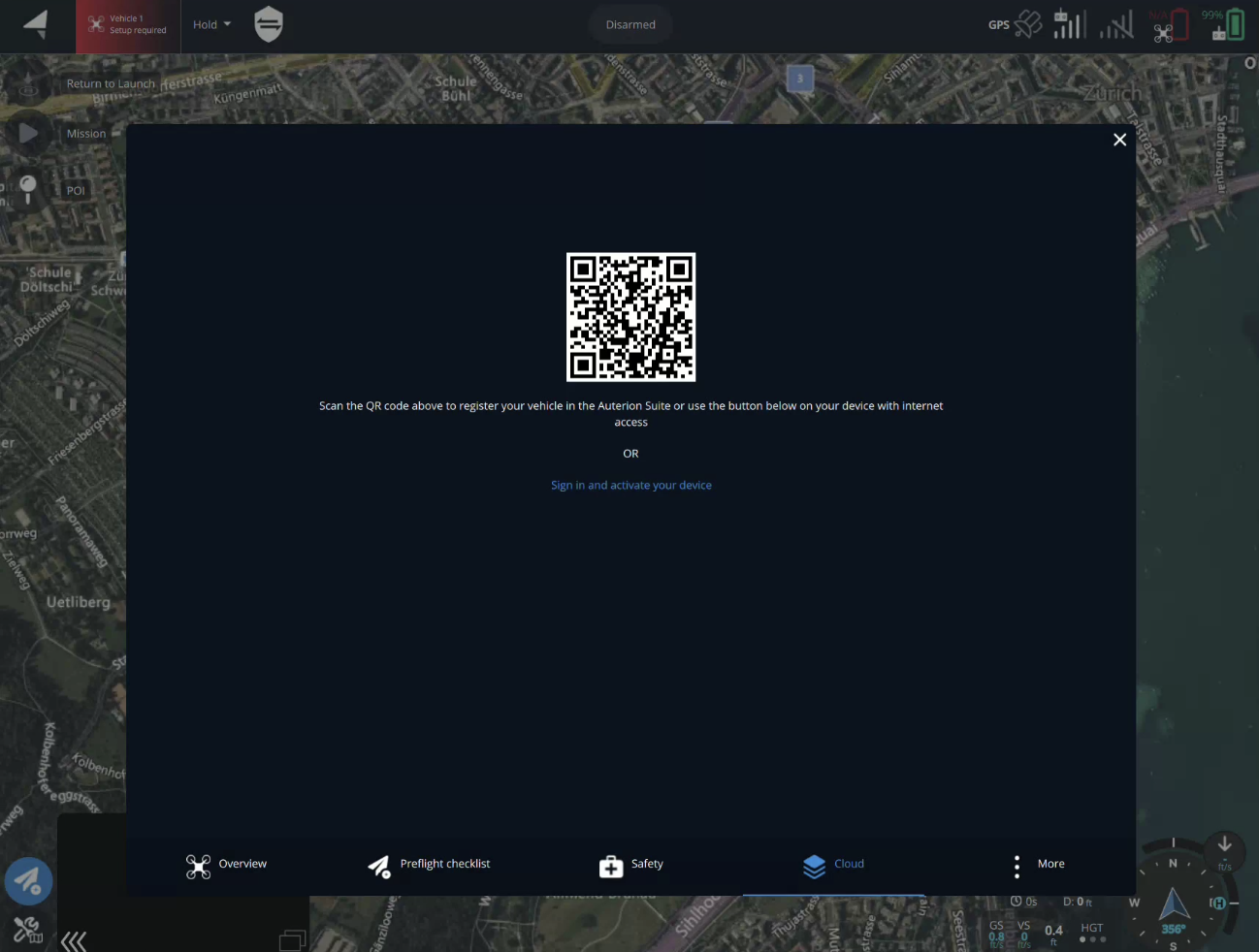

If the vehicle is not registered, you will be presented with a QR code to scan or a link to register your vehicle.

<figure><img src="https://3329189600-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FFW1Ge1p1f6WHyiYCb146%2Fuploads%2Fgit-blob-40dcc779b2e055c53d0d34f87175c13d0a476599%2FScreenshot%202025-03-12%20at%2013.54.03.png?alt=media" alt=""><figcaption></figcaption></figure>

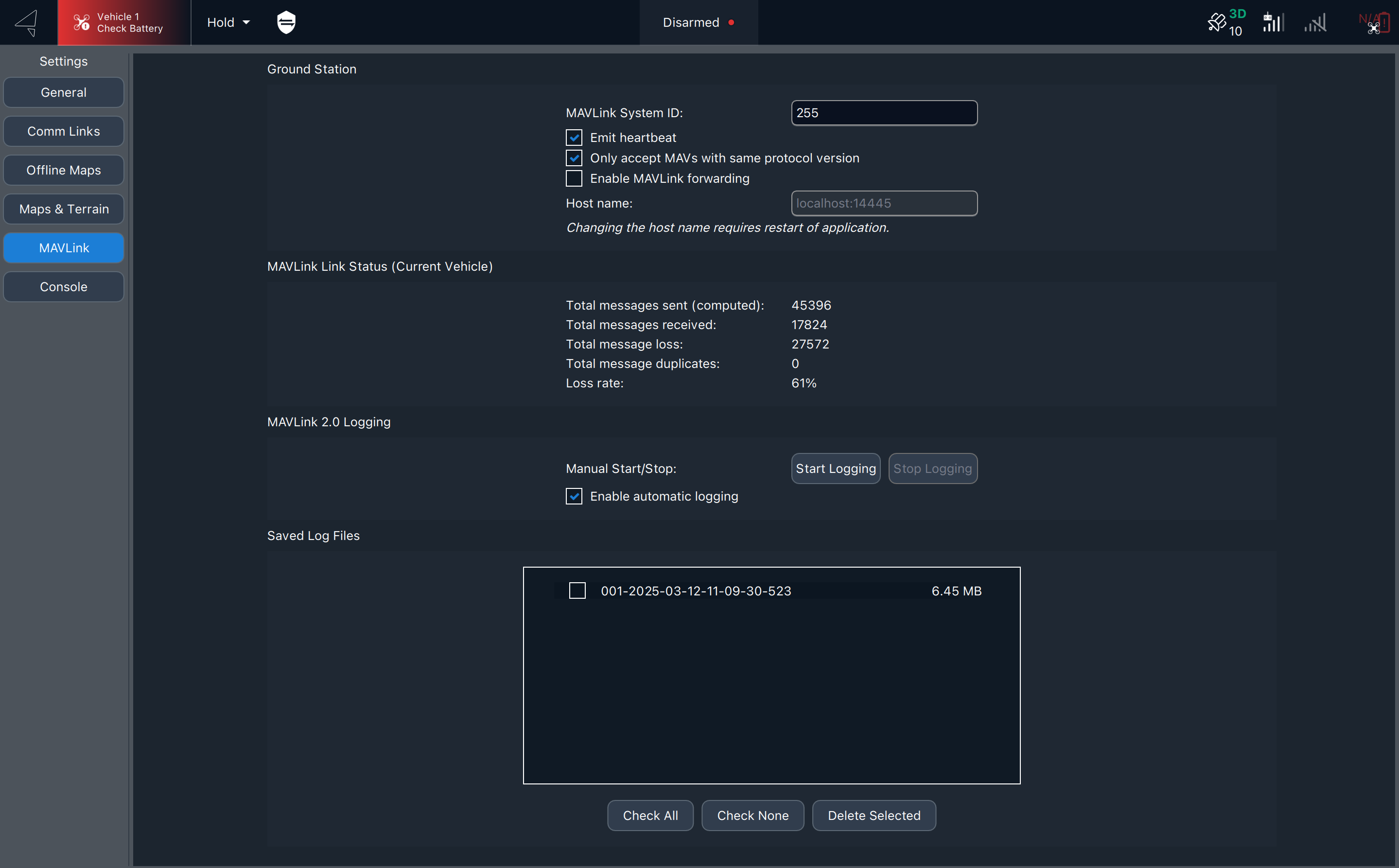

2. Once the vehicle is activated, switch to advanced mode and go Setting and then to the MAVLink tab. Enable automatic logging, and once activated, the logs will be saved under Saved Log Files.

<figure><img src="https://3329189600-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FFW1Ge1p1f6WHyiYCb146%2Fuploads%2Fgit-blob-8e86722e60d96557ef003e5caed762f89b820f0e%2FScreenshot%202025-03-12%20at%2014.51.31.png?alt=media" alt=""><figcaption></figcaption></figure>

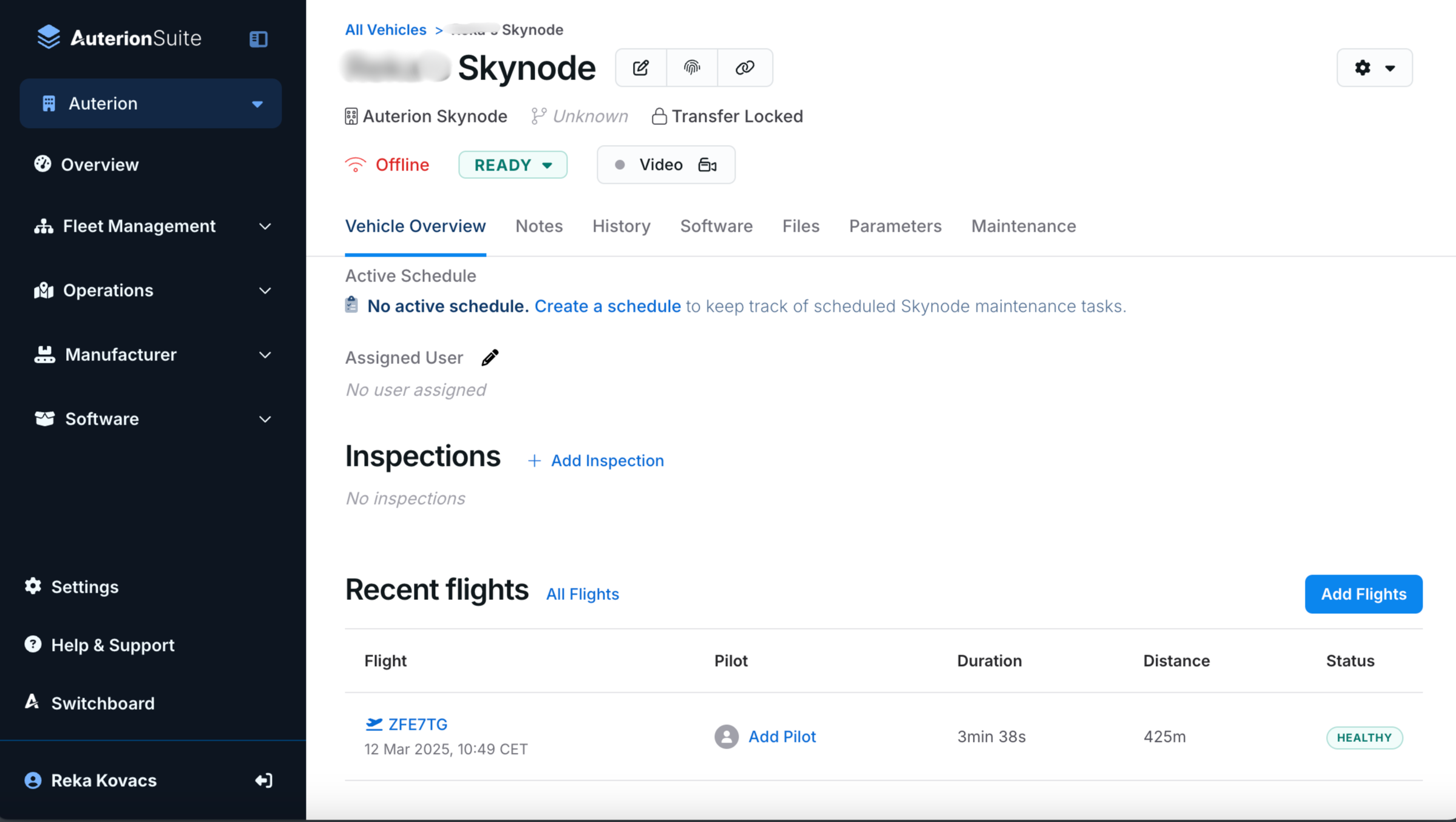

3. The logs will also be uploaded automatically to Auterion Suite under the Vehicle page.

<figure><img src="https://3329189600-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FFW1Ge1p1f6WHyiYCb146%2Fuploads%2Fgit-blob-5cc5750a5b015c11fde41b42a7dadce48f3d540c%2Fbf69f246-4e9b-4ef6-b0e6-e55da27709ee.png?alt=media" alt=""><figcaption></figcaption></figure>
