Payloads

Supported Cameras

Auterion supports and maintains the following cameras:

• Generic USB Webcams

• Trillium HD40-LV

• NextVision Nighthawk2/Colibri2

• Sony Alpha a7R IV

Supported Gimbals

• Gremsy Pixy U, S1V3, T3V3

General Setup - same for all payloads

1. Connect the payload to the port described in the corresponding sections linked above

2. Power Skynode

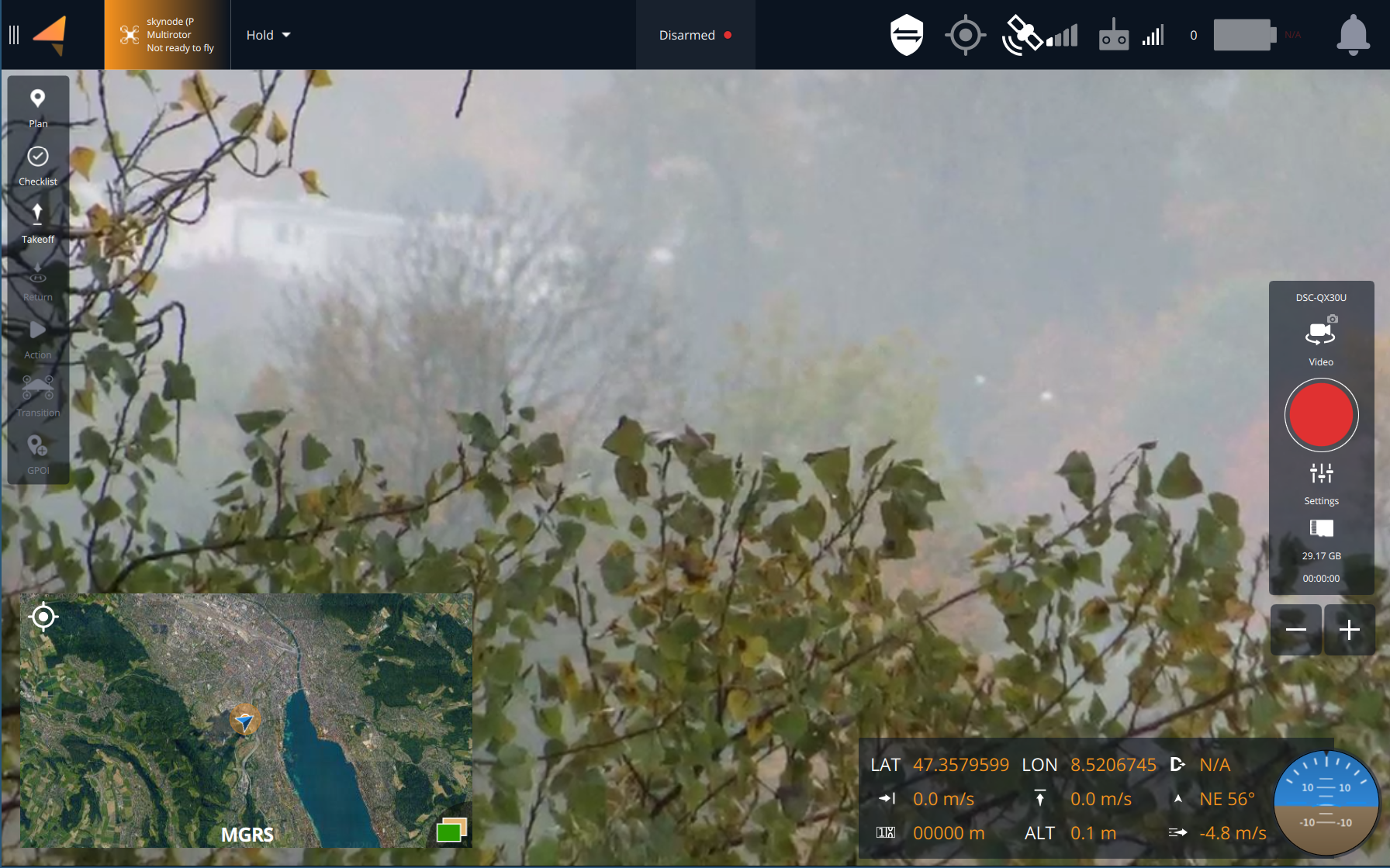

3. Open Auterion Mission Control > Fly View. A video switcher should be displayed in the bottom left corner.



   If the video switcher shown above is not displayed:

   • Use the menu (top left) to open Settings > General, and scroll to the "Video" section.

   • Select RTSP Video Stream as video source as shown:


4. Click on the video feed (left corner) to make the video screen full screen and get the camera controls. For more information see Fly View UI Overview for AMC
