Wiring Skynode to the Vehicle

PreviousRequired SensorsNextActuators Setup

Last updated 1 year ago

Wiring sensors and actuators

In order to connect sensors and actuators to Skynode, it is suggested to use the Pixhawk Adapter Boards (Refer to the image below).

How to connect the interface boards

  1. Disconnect Skynode from power

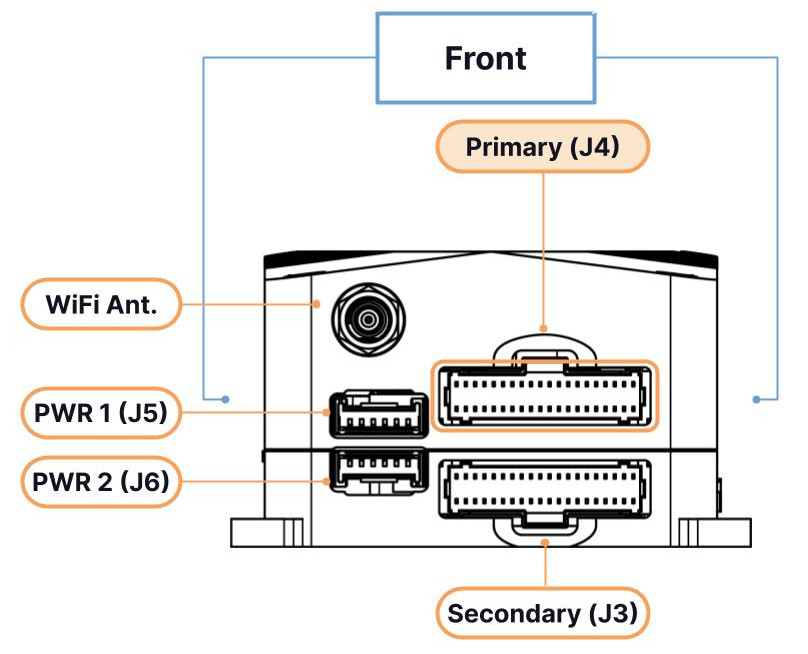

  2. Connect the Skynode Primary interface (J4) and the Pixhawk Adapter Board (J11) using a Straight Molex PicoClasp 40-pin interface cable

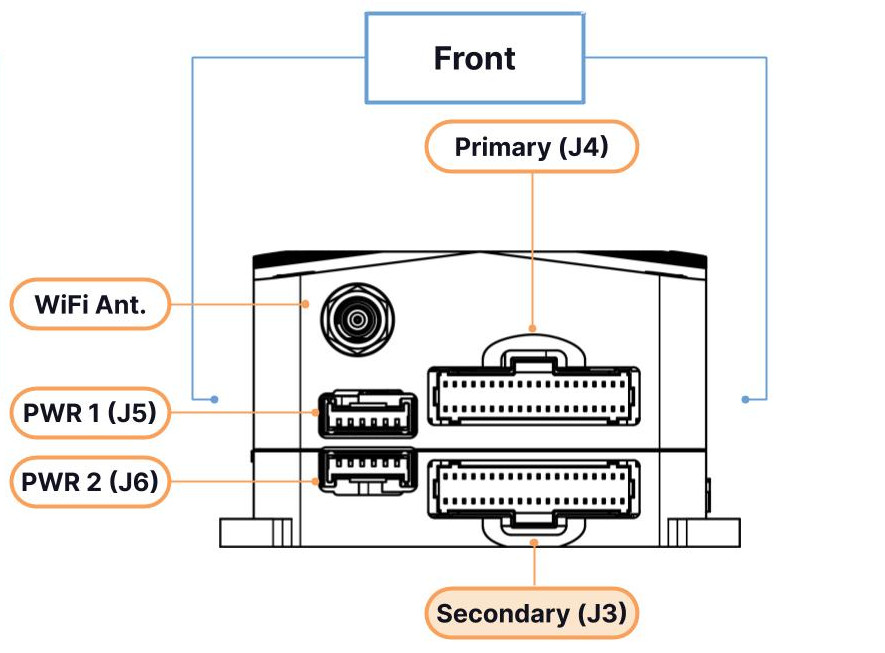

  3. Connect the Skynode Secondary interface (J3) and the Pixhawk Adapter Board (J21) using a Straight Molex PicoClasp 40-pin interface cable

How to connect sensors

How to connect actuators

Actuators are generally connected to the (J15) and (J25) Pin Headers present on the Pixhawk Adapter Board. Be aware of the naming convention used for this: MAIN channels on (J25) and AUX channels on (J15).

MAIN outputs in the PX4 documentation are run over the IO which is wired over the SECONDARY breakout board

AUX outputs in the PX4 documentation are run over the FMU which is wired over the PRIMARY breakout board

The number of actuators and their function depends on the Airframe Configuration.

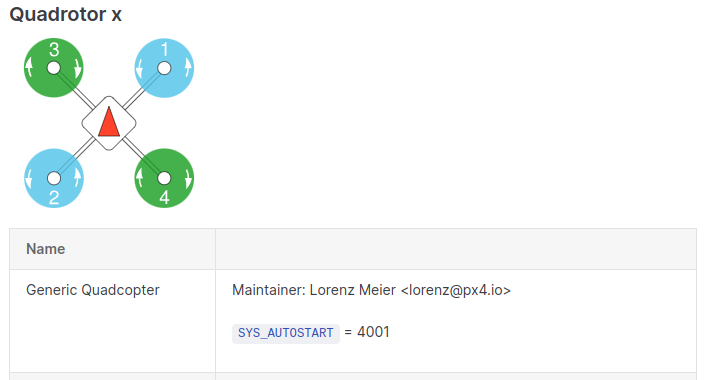

  1. Check and note down the SYS_AUTOSTART parameter related to the desired Airframe. For this example SYS_AUTOSTART = 4001 (as shown in the figure below). The number and type of actuators needed for this airframe are also visible from the image and/or the Common Output section. For this example: 4 motors (Motor1-4).

  1. Wire the ESCs and Servos cables to the AUX or MAIN channels of the Pixhawk Adapter Board and note down which actuators corresponds to which channel. E.g. for the Generic Quadcopter wire the ESCs for motors 1-4 to the AUX channels 1-4.

Be aware that the Pin Headers (J15 and J25) are not powered by Skynode. Skynode is only sending the signal out of the IO(J25) or FMU(J15) pins. This means, that you will need to connect the required power supply to the VDD and GND pins, if this is required by the actuators used. Normally ESCs are connected to Battery via the Skynode Power Module. On the other hand, servos normally need an external power supply.

Mounting Skynode on the vehicle

These cover:

  • Recommended Skynode mounting orientation (see mounting note below)

  • Considerations for Antenna placement (regulatory)

  • General recommendations for reducing electromagnetic interference (separation of GPS and Skynode, keep-out zones for ESC wiring, USB wiring etc.).

The data sheet also contains information about the power architecture and other supported peripherals.

Mounting note: The flight direction of Skynode is indicated by the Auterion "A" on the enclosure.

When using the sensors delivered with the Skynode Evaluation Kit, it is possible to follow in depth guides on how to set them up, configure and test their correct functioning from the page.

If you are integrating other sensors please refer to the reference page to connect them to the proper input peripheral.

If you are using an airframe present on the you have to make sure to assign the actuators to the right AUX or MAIN channel before you will be able to start testing and using them. If this is not the case you will need to create your own Airframe Configuration File as explained in .

Go to the and look for the Generic Quadcopter Airframe Reference.

It is recommended to mechanically mount Skynode on the vehicle before starting with bench testing. General requirements and recommendations regarding Skynode mounting are covered in the "Installation" section of the .
