Mission Menu

On the Mission Menu the user is able to find all locally stored mission and manage them as needed. This includes importing/exporting missions from/to an external storage as well as enabling the storage in the Mission Cloud Sync.

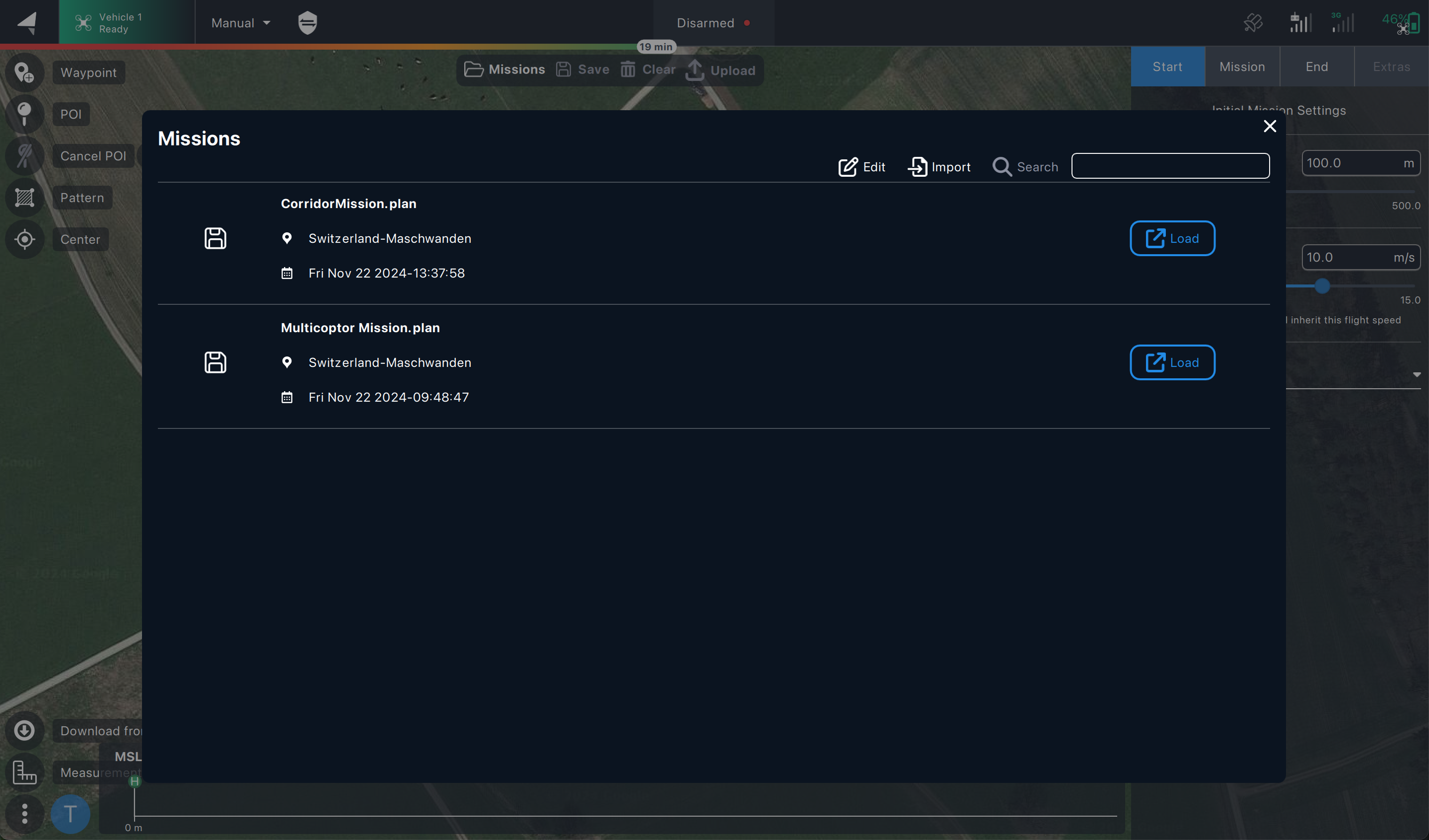

To open the Mission Menu switch to the Plan View and on the top bar select "Missions"

Mission Menu

Load Missions

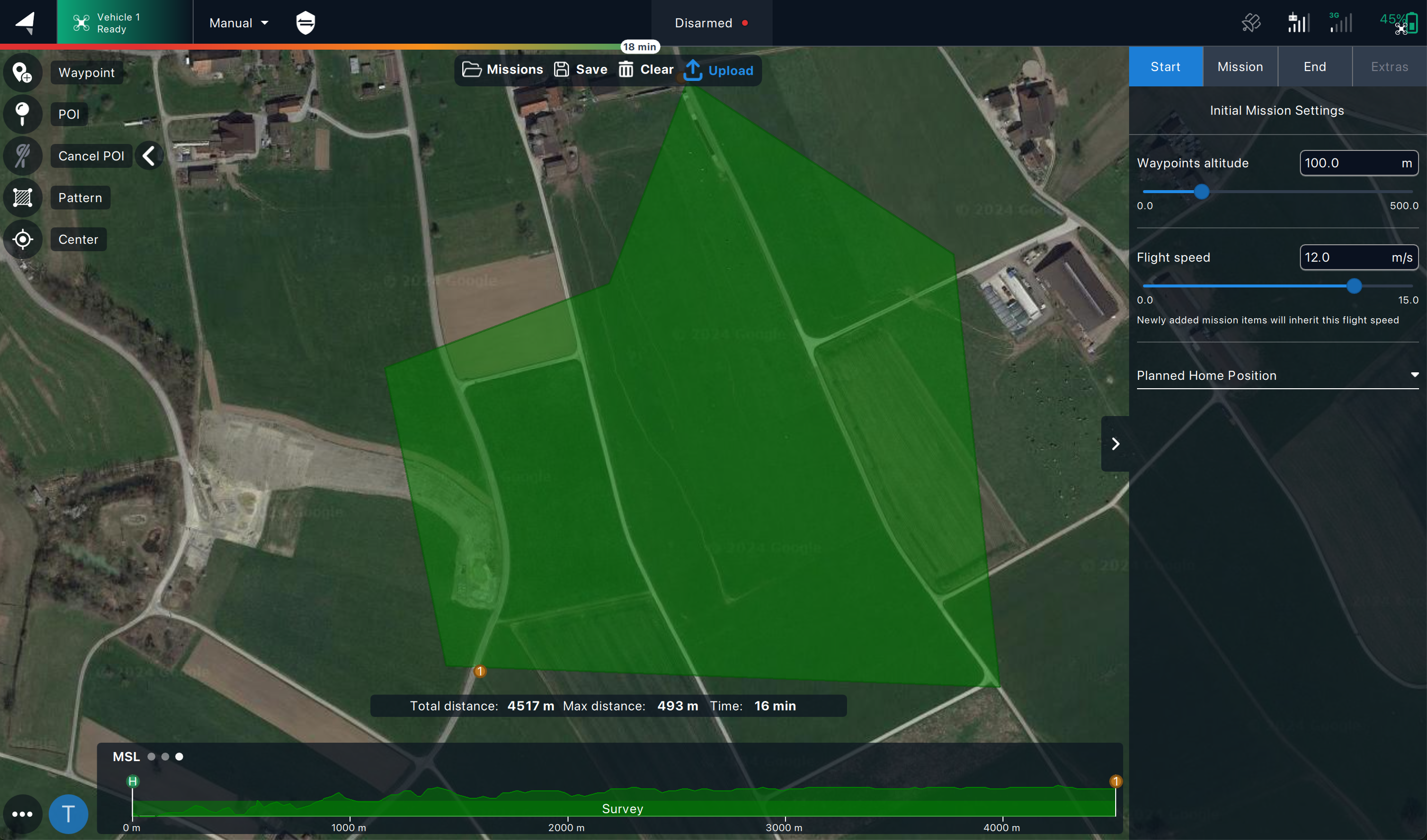

When loading an available mission the user will have the possibility to make any adjustments to the mission by navigating though the Mission Editor Tab allowing the pilot to perform any required changes suitable to the terrain.

After finishing any amendments the pilot can "Upload" the mission to the vehicle launch the mission fully autonomousley.

Save Missions

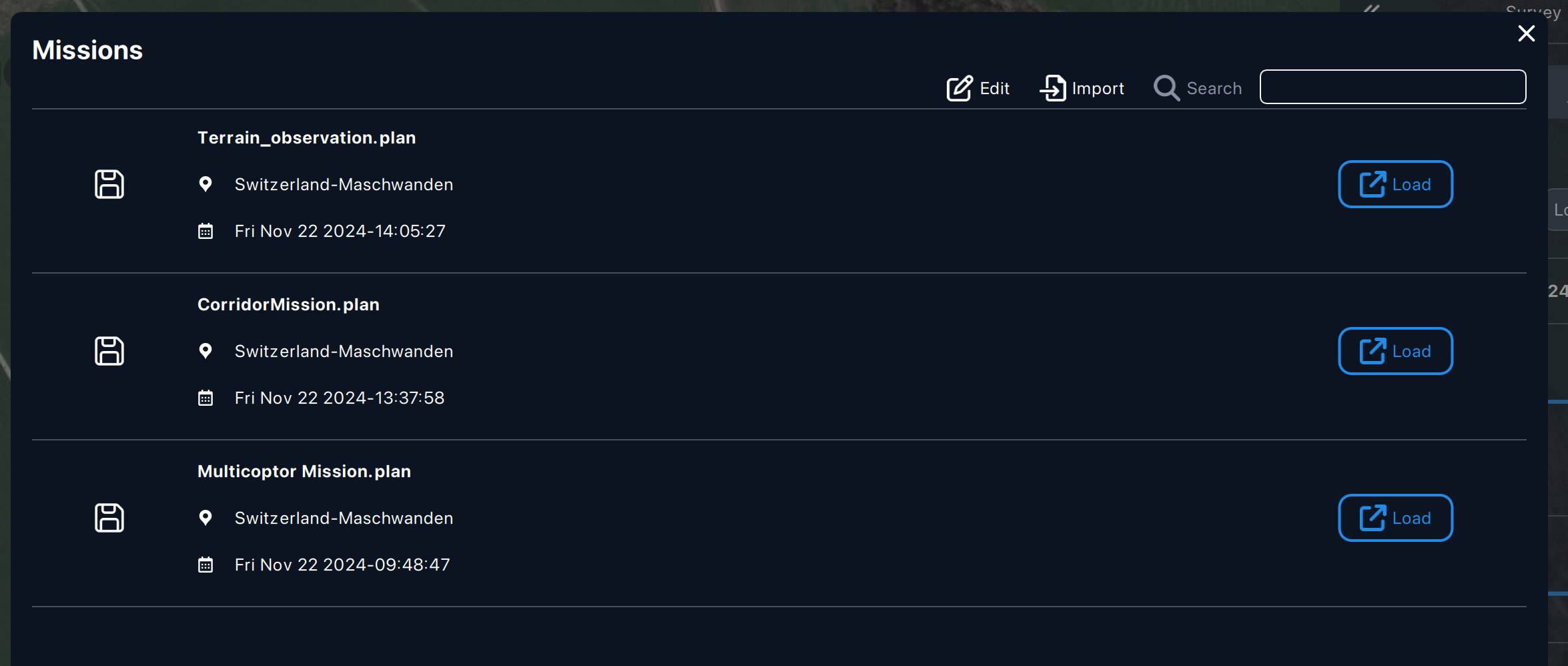

Any mission created can be locally stored in the device running AMC. They will immediately be visible in the Mission Menu.

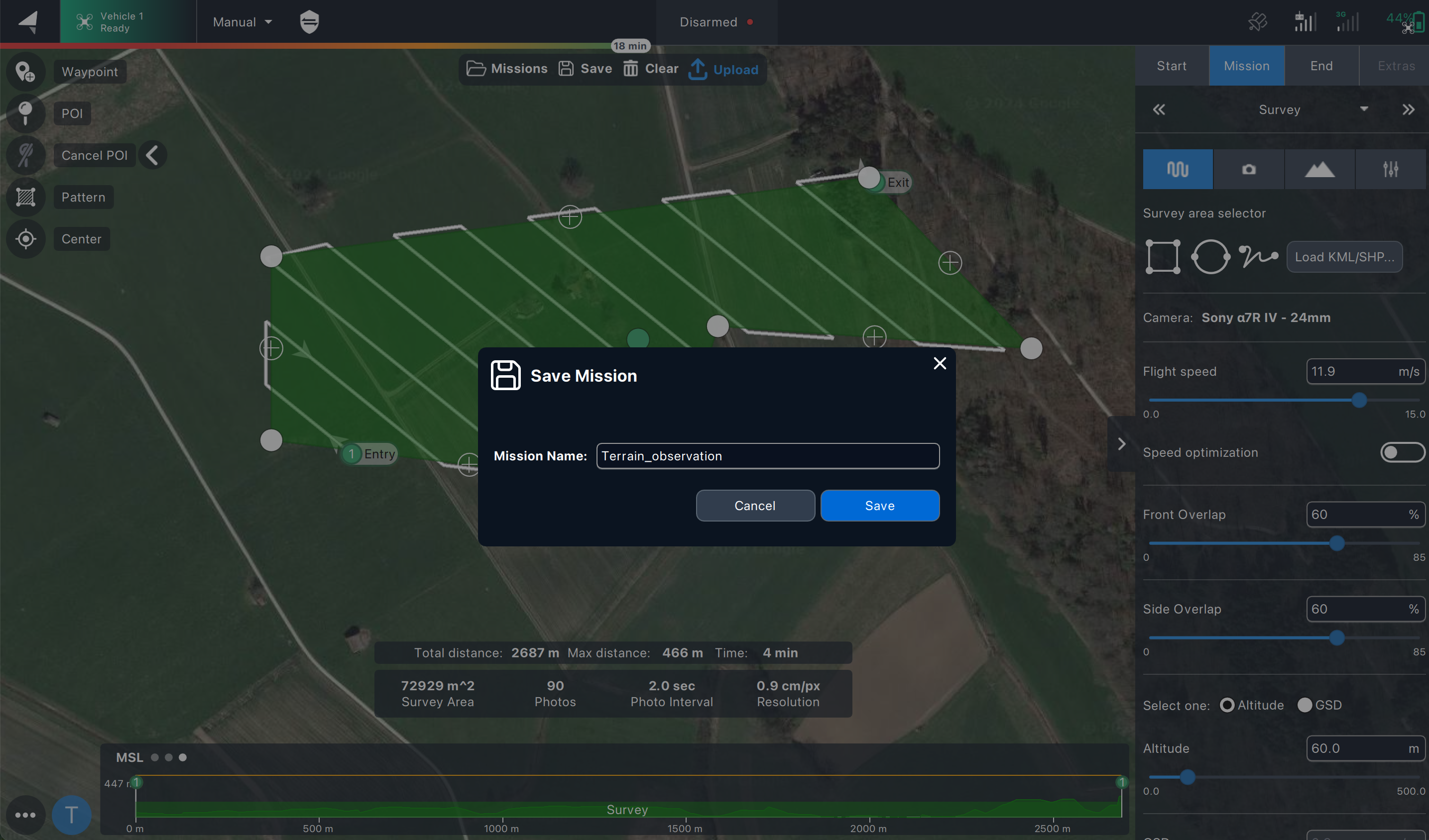

1. Create a mission

2. Select "Save" on the top bar

3. Name your mission and select "Save"

Import Missions

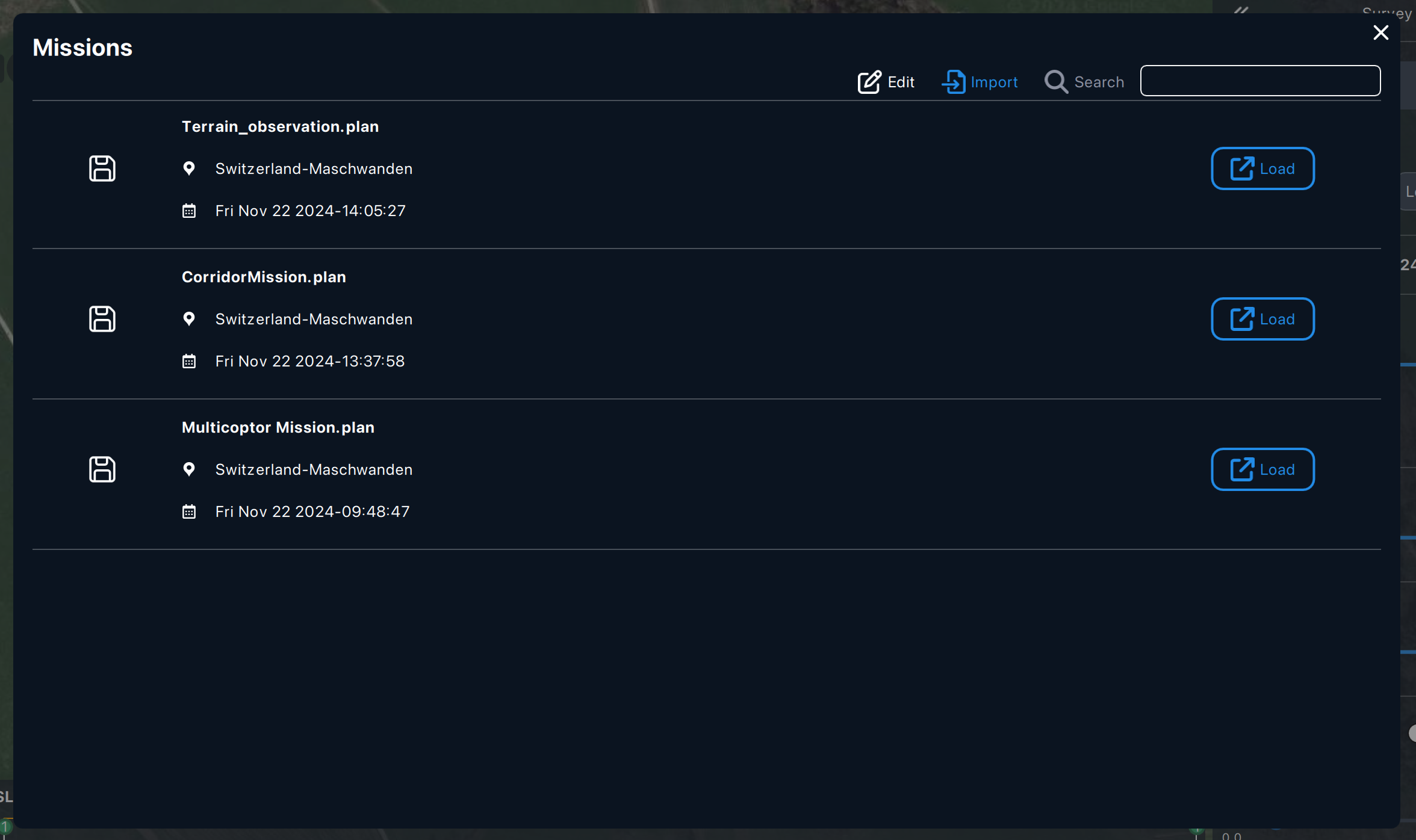

If selecting the "Import" button on the top of the Mission Menu the user has the possibility to add any mission stored as a .plan file to AMC.

Edit Stored Missions

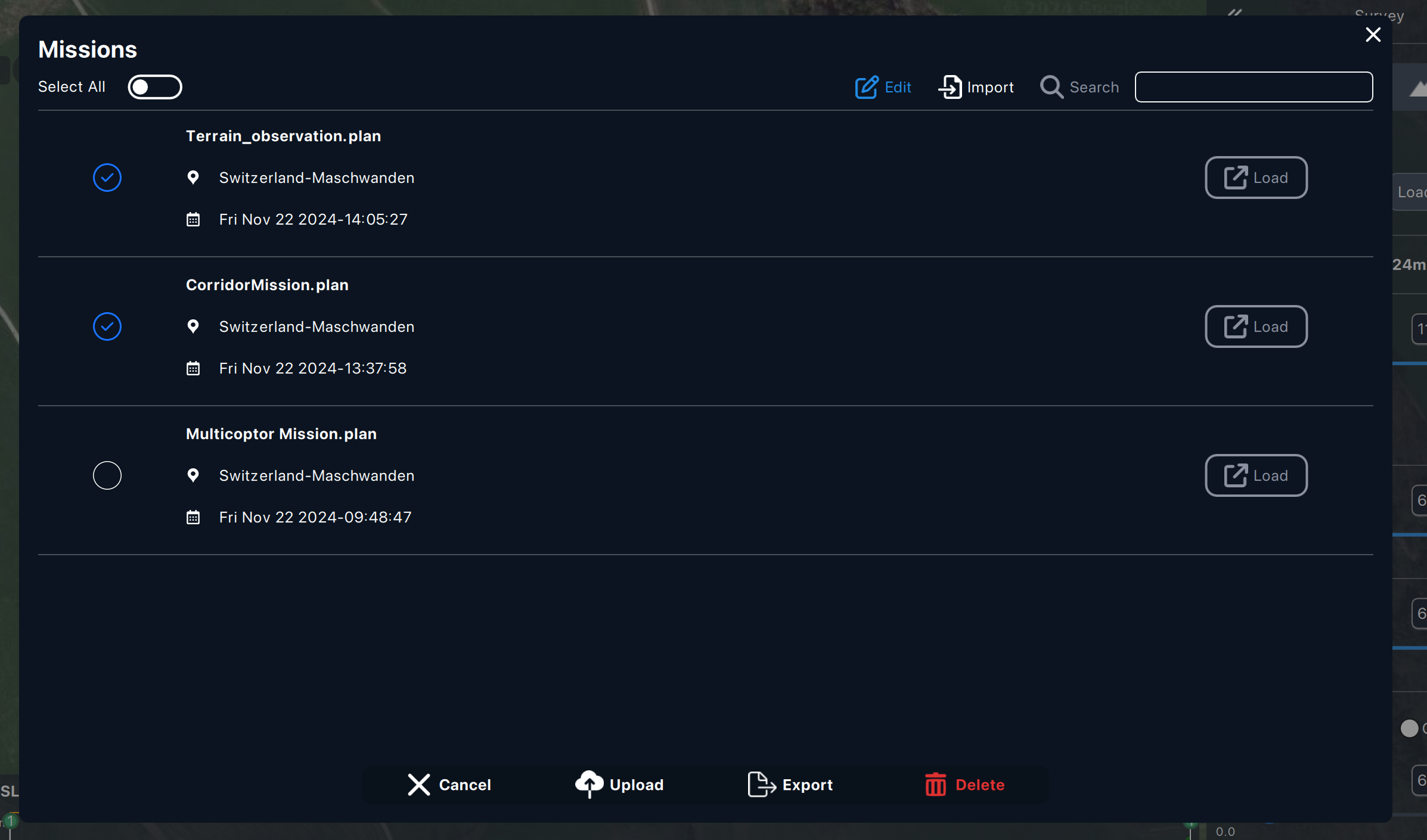

Selecting the "Edit" button gives the user the following possibilities:

• Cancel Aboard any action and return to previous window.

• Upload If Mission Cloud Sync enabled the user can upload locally stored missions to the cloud.

• Export Selected missions can be stored in any desired location.

• Delete Selected missions will be permanently removed.
