  1. Hardware Integration
  2. Skynode
  3. Peripherals

12S Power Module

PreviousPower ModuleNextPixhawk Adapter Board

Last updated 4 months ago

The Auterion 12S Power Module can be used to power Skynode from 4S to 12S batteries (12V to 51V). The power module includes a 5.3V regulator with a maximum current rating of 8A and a 10V regulator with a maximum current rating of 2.7A. Furthermore the power module is used to measure battery voltage and current to the flight controller.

The Power Module comes with a fan mounted on top.

The presence of the fan is fundamental to guarantee the performance described in the datasheet.

Overview

Connectors

Name

Connector

Description

VIN

XT90

Battery voltage input

VOUT

XT90

Battery voltage output

5.3 VOUT

Molex Micro-Lock Plus 5055670681

5.3V regulated power supply for Skynode

10 VOUT

Molex Micro-Fit 3.0 0436500210

10V power supply for other peripherals

Pinouts

VIN

Maximum voltage: 51V Maximum current: 100A (continuous) - 120A (for maximum 20s)

Exceeding these limits can permanently damage the power module.

Pin

Name

Dir

Lvl

Function

1

VIN

IN

VBAT

Connected to battery or power supply

2

GND

Ground

VOUT

Pin

Name

Dir

Lvl

Function

1

VOUT

OUT

VBAT

Connects to ESCs and other high-current components

2

GND

Ground

5.3 VOUT - Skynode Power

Maximum output current 8A.

Pin

Name

Dir

Lvl

Function

1

5.3 VOUT

OUT

5.3V

5.3V output

2

5.3 VOUT

OUT

5.3V

5.3V output

3

I2C_SCL

I/O

3.3V

Voltage/Current reporting via I2C

4

I2C_SDA

I/O

3.3V

Voltage/Current reporting via I2C

5

GND

Ground

6

GND

Ground

10 VOUT (J5)

Maximum output current 2.7A.

Pin

Name

Dir

Lvl

Function

1

GND

Ground

2

10V OUT

OUT

10V

10V output

10MB
12s_power_module_v15.step
Power Module 3D model mockup
86KB
Auterion 12S Power Module Datasheet.pdf
pdf
Auterion 12S Power Module Datasheet

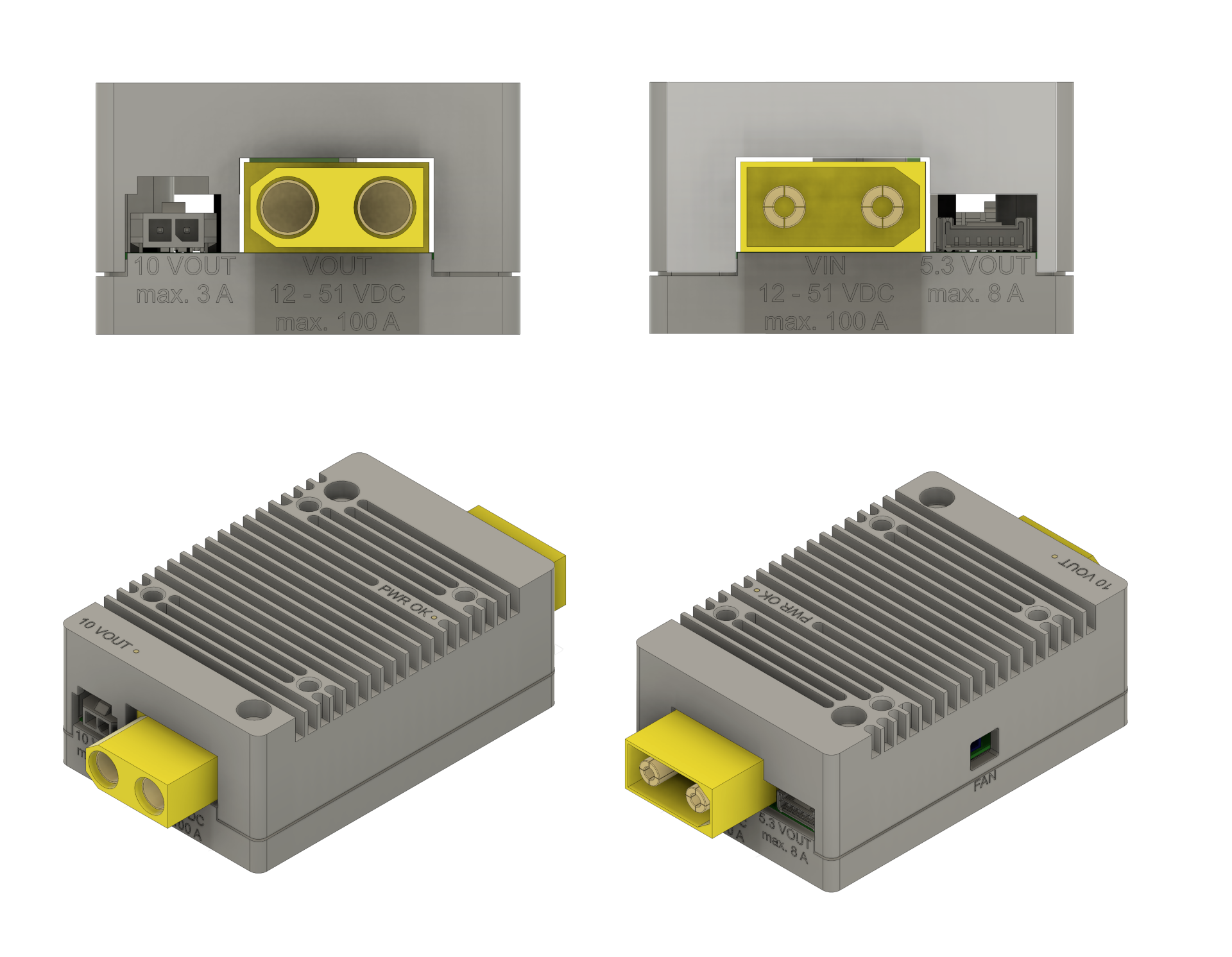

Auterion 12S Power Modules Renderings
