Evaluation Kit
This section contains information about components of the Skynode Enterprise Evaluation Kit, including the Microhard Communikation Kit.
Quickstart.pdf
1MB
PDF

The contents of our evaluation kit can slightly change as we adapt to availability on the market and our customer's needs. The actual list of parts in your kit can be seen in the quote you received. This is a list of all components that were in the evaluation kit at some point, and therefore compatible with Skynode.
Image | Part Number | Description |
---|---|---|
![]() | NA 900-00023
EMEA: 900-00005 | Skynode Enterprise |
![]() | 830-00029 | Used to break out the Skynode flight control interfaces on J3 and J4 into Pixhawk-standard compatible connectors/pinouts. |
![]() | 830-00030 | Adapter board for the Pixhawk Payload Bus |
![]() | 810-00006 | |
![]() | 870-00006 | |
![]() | 870-00004 | Freefly RTK GPS Module |
![]() | 115-00041 | PWR SKND 5V
Molex Micro-Lock Plus 6-pin (Skynode/power module cable) Note: Only use the cable included in the kit. Similar cables available e.g. on Digikey are not compatible with Skynode. |
![]() | 115-00037 | PRIMARY/SECONDARY
Molex Pico-Clasp 40-pin (Skynode to Pixhawk adapter board cable) |
![]() | 115-00053 | PAYLOAD BUS
FFC 30-pin (PPB adapter board cable) |
![]() | 115-00043 | SKND USB ADAPTER
JST GH 4-pin to USB-A female cable |
![]() | A000051 (deprecated) | GPS
JST GH 10-pin to JST 8-pin (GPS cable) |
![]() | 115-00045 | PIXHAWK 4-PIN
JST GH 4-pin to JST GH 4-pin (cable) |
![]() | 115-00046 | PIXHAWK 6-PIN
JST GH 6-pin to JST GH 6-pin (cable) |
![]() | 115-00047 | RC RECEIVER
JST GH 3-pin to pigtail/open lead (SBUS cable) |
![]() | 115-00048 | PIXHAWK 11-PIN
JST GH 11-pin to JST GH 11-pin (SPI cable) |
![]() | 115-00044 | USB-C
USB-C to USB-A (Skynode to ground station cable for developers) |
![]() | 127-00005 | WIFI
2.4/5GHz Antenna Wifi/Bluetooth. This antenna is white |
![]() | 115-00009 | WIFI ANTENNA EXTENSION
Cable to connect the Wi-Fi antenna to Skynode |
![]() | 127-00007 | LTE
Antenna LTE |
![]() | 170-00002 | POWER SUPPLY
AC/DC power supply (24V 36W) |

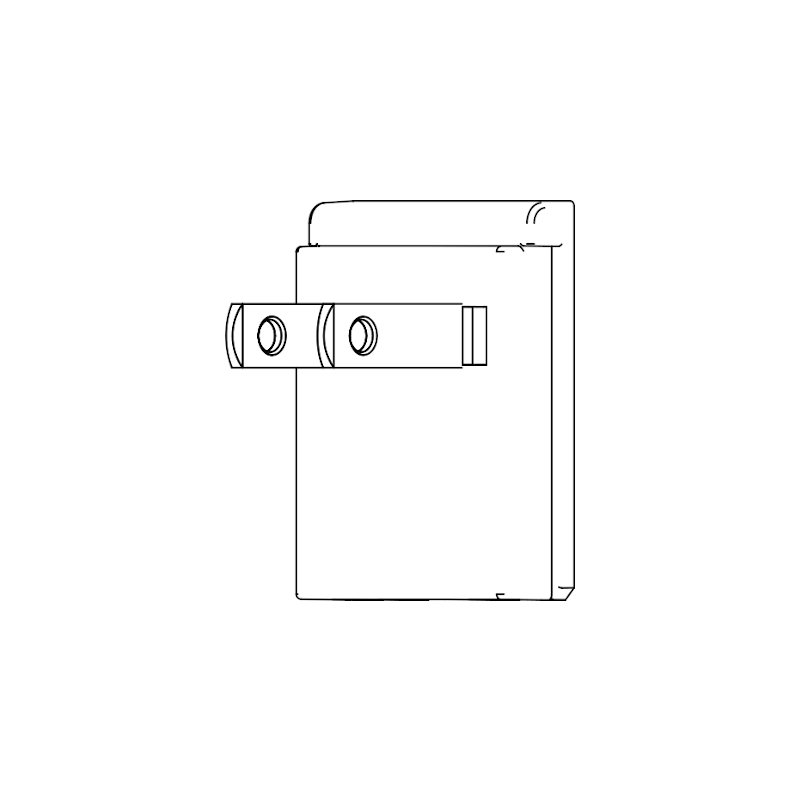

![]() | 125-00006 | PLUG NA
Socket adapter for North America |
![]() | 125-00001 | PLUG EU
Socket adapter for Europe |

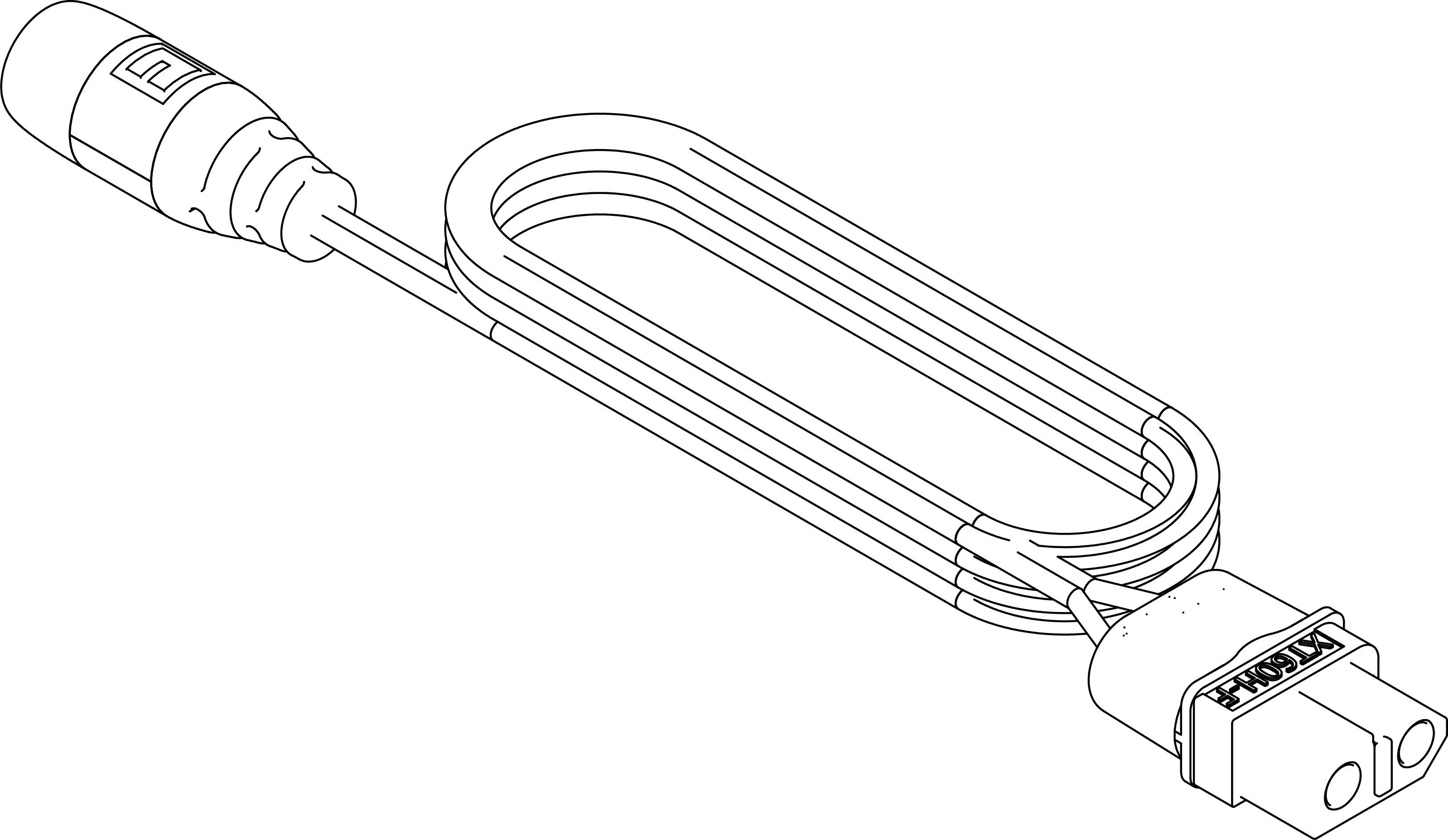

![]() | 115-00050 | PWR ADAPTER XT60
Cable barrel connector to XT60 (adapter for power supply cable to power module input) |
![]() | 870-00001 | DISTANCE SENSOR Lightware LW20/C |
![]() | 870-00003 | Drotek SDP33 |
![]() | 161-00003 | |
![]() | 161-00002 | RunCam webcam |
The Microhard Communication Kit is included in the Skynode Evaluation Kit. It contains two Microhard Communication Modules, along and everything needed to connect them to Skynode.

Image | Part Number | Description |
![]() | 810-00005 | |
![]() | 115-00051 | RADIO ETH AIR
Cable JST GH 4-pin to JST GH 4-pin twisted pair (Skynode Ethernet/Microhard air unit cable) |
![]() | 115-00042 | RADIO ETH GROUND
Cable JST GH 4-pin to RJ45 (Ethernet to ground station cable) |
![]() | 115-00039 | RADIO PWR GROUND
Power cable for XT60 supply |
![]() | 115-00052 | RADIO PWR AIR
Power cable for use with power module |
![]() | 127-00004 | ANTENNA
2.4 GHz Antenna for Data link module. This antenna is black. |
![]() | 880-00007 | ETHERNET TO USB
Ethernet to USB-C adapter to connect GROUND unit to a tablet |
