Power Module
The Skynode Evaluation Kit includes a power module which is used to power Skynode from a battery with up to 6 Cells (9V to 30V). The power module includes a 5V regulator with a maximum current rating of 5A. Furthermore the power module is used to measure battery voltage and current to the flight controller. Lastly the power module also provides a secondary battery voltage output for the Microhard module. This output is directly connected to the battery input and therefore provides the same voltage level as the input.
Power Module.stl
1MB
Binary

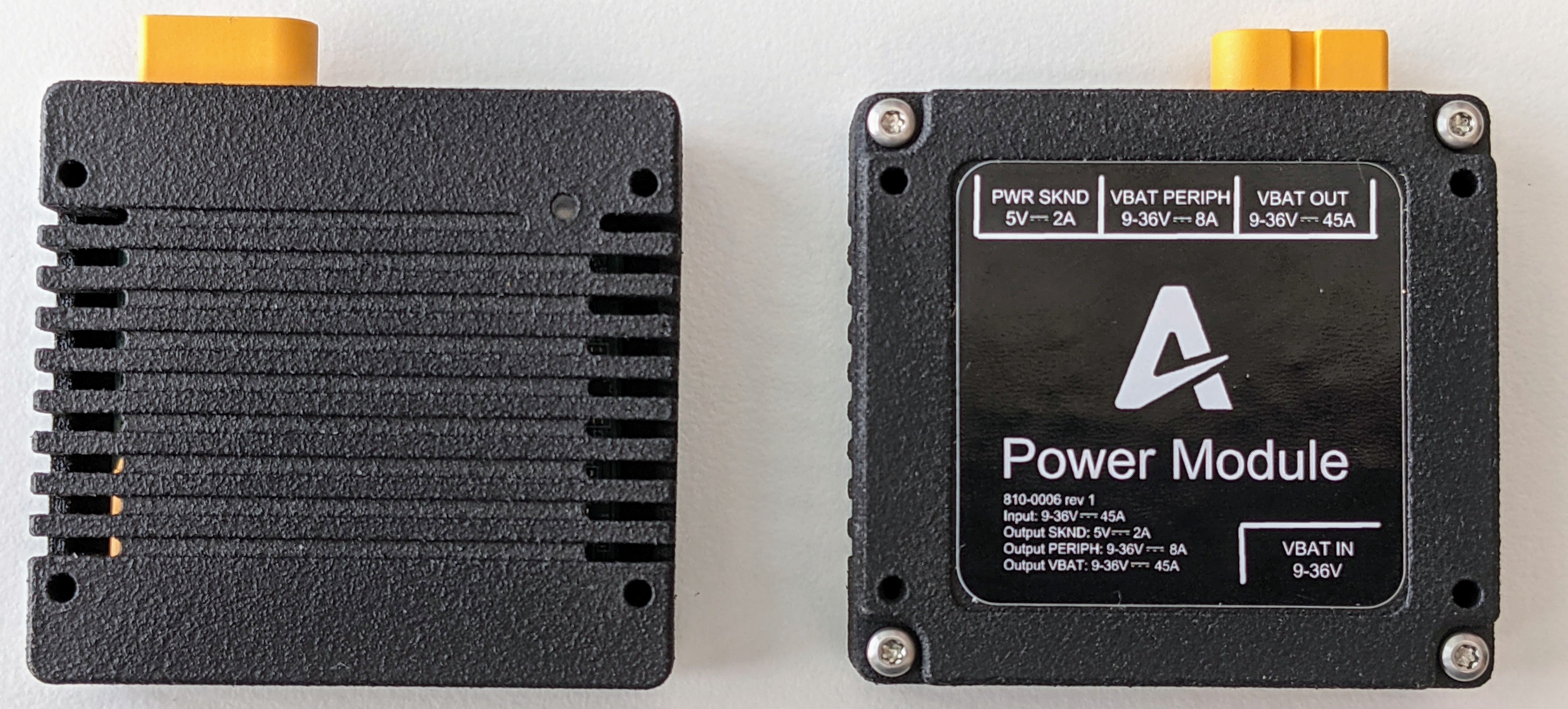

3D model mockup
ID | Name | Connector | Description |
J1 | VBAT_IN | XT60 | Battery voltage input |
J2 | VBAT_OUT | XT60 | Battery voltage output |
J3 | VOUT_5V | Molex Micro-Lock Plus
5055670681 | 5V regulated power supply for Skynode |
J5 | VBAT_PERIPH | Molex Micro-Fit 3.0
0436500210 | Battery voltage for other peripherals |
Maximum voltage: 36V
Maximum current: 45A (continuous)
Exceeding these limits can permanently damage the power module.
Pin | Name | Dir | Lvl | Function |
1 | VBAT_IN | IN | VBAT | Connected to battery or power supply |
2 | GND | | | Ground |
Output is not fused or current limited.
Pin | Name | Dir | Lvl | Function |
1 | VBAT_OUT | OUT | VBAT | Connects to ESCs and other high-current components |
2 | GND | | | Ground |
Maximum output current 5A.
Pin | Name | Dir | Lvl | Function |
1 | VDD_5V | OUT | 5.3V | 5V output |
2 | VDD_5V | OUT | 5.3V | 5V output |
3 | I2C_SCL | I/O | 3.3V | Voltage/Current reporting via I2C |
4 | I2C_SDA | I/O | 3.3V | |
5 | GND | | | Ground |
6 | GND | | | Ground |
Pin | Name | Dir | Lvl | Function |
1 | GND | | | Ground |
2 | VBAT_OUT | OUT | VBAT | 8A fused |
