Evaluation Kit

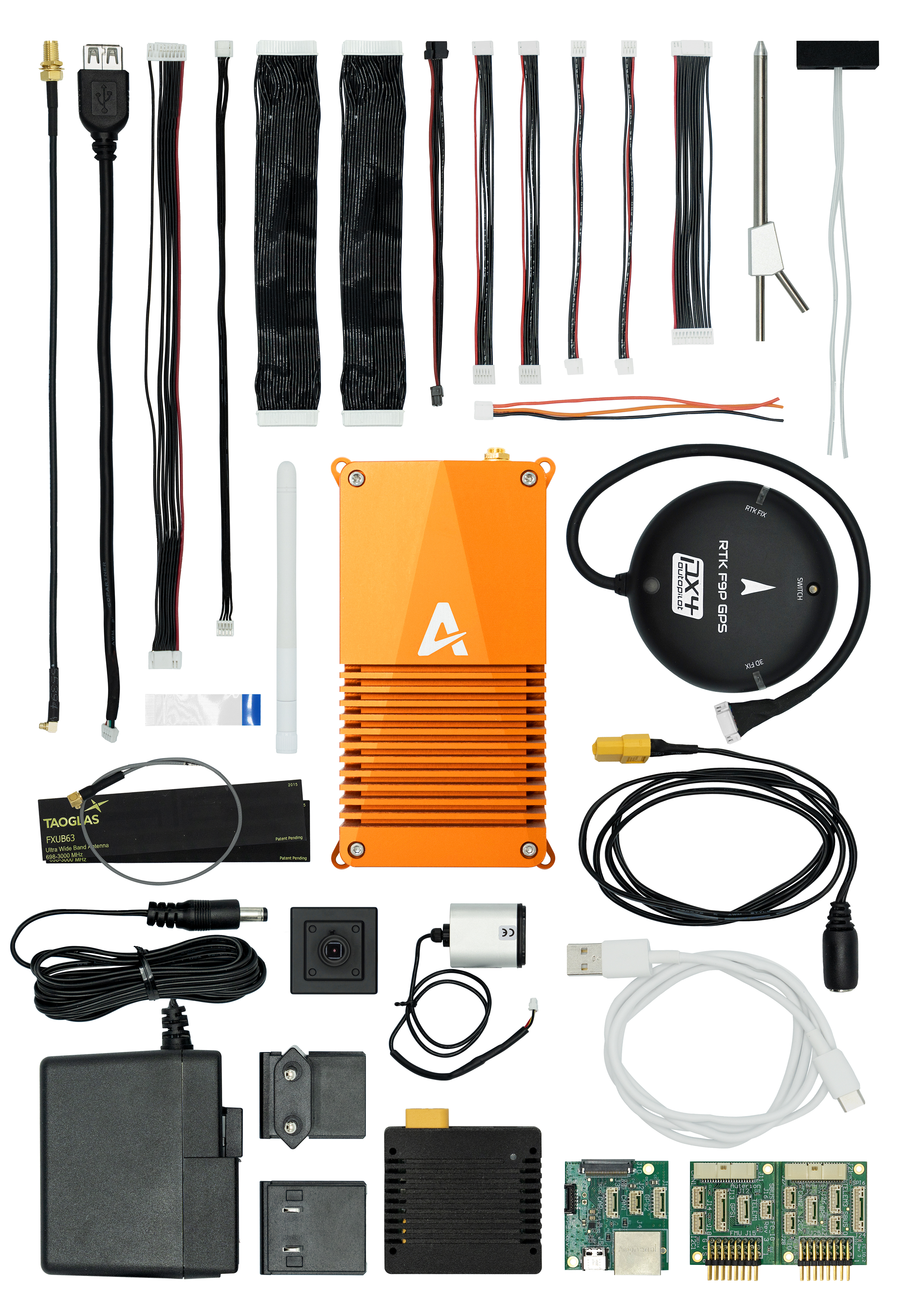

This section contains information about components of the Skynode Enterprise Evaluation Kit, including the Microhard Communikation Kit.​‌
Quickstart.pdf
1MB
PDF

Overview

‌Supported components

The contents of our evaluation kit can slightly change as we adapt to availability on the market and our customer's needs. The actual list of parts in your kit can be seen in the quote you received. This is a list of all components that were in the evaluation kit at some point, and therefore compatible with Skynode.
Part Number
Description
​​
NA
900-00023
EMEA:
900-00005
Skynode Enterprise
​​
830-00029
Used to break out the Skynode flight control interfaces on J3 and J4 into Pixhawk-standard compatible connectors/pinouts.
​​
830-00030
Adapter board for the Pixhawk Payload Bus
​​
810-00006
POWER MODULE VDC IN: 9V-30V​
870-00006
PX4 F9P GPS RTK-enabled F9P GNSS receiver manufactured by Holybro
​​
870-00004
Freefly RTK GPS Module
​​
115-00041
PWR SKND 5V Molex Micro-Lock Plus 6-pin (Skynode/power module cable)
Note: Only use the cable included in the kit. Similar cables available e.g. on Digikey are not compatible with Skynode.
​​
115-00037
PRIMARY/SECONDARY Molex Pico-Clasp 40-pin (Skynode to Pixhawk adapter board cable)
​​
115-00053
PAYLOAD BUS FFC 30-pin (PPB adapter board cable)
​​
115-00043
SKND USB ADAPTER JST GH 4-pin to USB-A female cable
​​
A000051
(deprecated)
GPS JST GH 10-pin to JST 8-pin (GPS cable)
115-00045
PIXHAWK 4-PIN JST GH 4-pin to JST GH 4-pin (cable)
115-00046
PIXHAWK 6-PIN JST GH 6-pin to JST GH 6-pin (cable)
115-00047
RC RECEIVER JST GH 3-pin to pigtail/open lead (SBUS cable)
115-00048
PIXHAWK 11-PIN JST GH 11-pin to JST GH 11-pin (SPI cable)
115-00044
USB-C USB-C to USB-A (Skynode to ground station cable for developers)
​​
127-00005
WIFI 2.4/5GHz Antenna Wifi/Bluetooth. This antenna is white
115-00009
WIFI ANTENNA EXTENSION Cable to connect the Wi-Fi antenna to Skynode
127-00007
LTE Antenna LTE
​​
170-00002
POWER SUPPLY AC/DC power supply (24V 36W)
​​
125-00006
PLUG NA Socket adapter for North America
125-00001
PLUG EU Socket adapter for Europe
​​
115-00050
PWR ADAPTER XT60 Cable barrel connector to XT60 (adapter for power supply cable to power module input)
870-00001
DISTANCE SENSOR
Lightware LW20/C
870-00003
Drotek SDP33
161-00003
CAMERA USB webcam manufactured by ELP
161-00002
CAMERA
RunCam webcam

Microhard Communication Kit

The Microhard Communication Kit is included in the Skynode Evaluation Kit. It contains two Microhard Communication Modules, along and everything needed to connect them to Skynode.

Overview

Microhard Kit Contents

Part Number
Description
810-00005
AIR/GROUND UNIT Microhard carrier with pMDDL2450 module
115-00051
RADIO ETH AIR Cable JST GH 4-pin to JST GH 4-pin twisted pair (Skynode Ethernet/Microhard air unit cable)
115-00042
RADIO ETH GROUND Cable JST GH 4-pin to RJ45 (Ethernet to ground station cable)
115-00039
RADIO PWR GROUND Power cable for XT60 supply
115-00052
RADIO PWR AIR Power cable for use with power module
127-00004
ANTENNA 2.4 GHz Antenna for Data link module. This antenna is black.
880-00007
ETHERNET TO USB Ethernet to USB-C adapter to connect GROUND unit to a tablet
